MS3112E12 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PT 10C 10#20 PIN RECP

Part	Orientation	Fastening Type	Mounting Type	Mounting Feature	Color	Number of Positions	Contact Finish - Mating	Termination	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Applications	Insert Material	Contact Material	Shielding	Shell Material	Ingress Protection	Grade	Shell Finish	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Qualification	Material Flammability Rating	Voltage Rating
Amphenol Aerospace Operations MS3112E12-10P	N (Normal)	Bayonet Lock	Panel Mount	Flange	Olive Drab	10	Gold	Solder Cup	10 mm	12 mm	Male Pins Receptacle
Amphenol Aerospace Operations MS3112E12-10S	N (Normal)	Bayonet Lock	Panel Mount	Flange	Olive Drab	10	Gold	Solder Cup	10 mm	12 mm	Female Sockets Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I
Amphenol Aerospace Operations MS3112E12-8PX	X	Bayonet Lock	Panel Mount	Flange	Olive Drab	8	Gold	Solder Cup	8 mm	12 mm	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I
Amphenol Aerospace Operations MS3112E12-8PW	W	Bayonet Lock	Panel Mount	Flange	Olive Drab	8	Gold	Solder Cup	8 mm	12 mm	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I
Amphenol Aerospace Operations MS3112E12-10SW	W	Bayonet Lock	Panel Mount	Flange	Olive Drab	10	Gold	Solder Cup	10 mm	12 mm	Female Sockets Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I

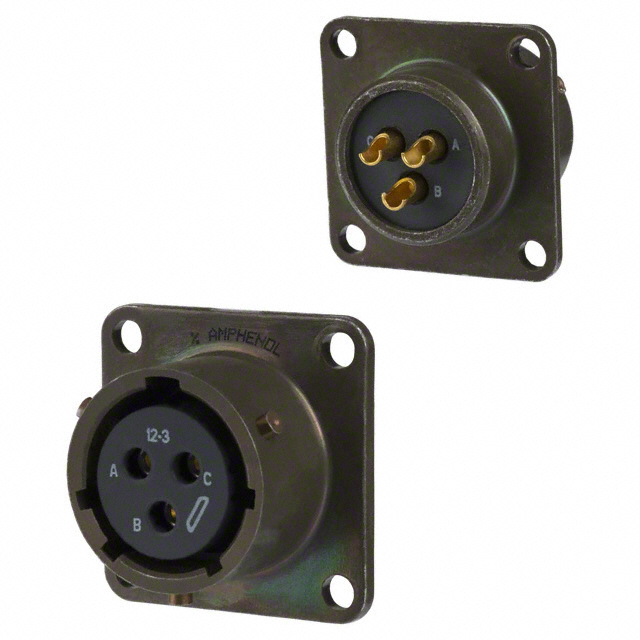

Amphenol Aerospace Operations MS3112E-12-3S	N (Normal)	Bayonet Lock	Panel Mount	Flange	Olive Drab	3	Gold	Solder Cup	3 mm	12 mm	Female Sockets Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I
Amphenol Aerospace Operations MS3112E12-10SZ	Z	Bayonet Lock	Panel Mount	Flange	Olive Drab	10	Gold	Solder Cup	10 mm	12 mm	Female Sockets Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I

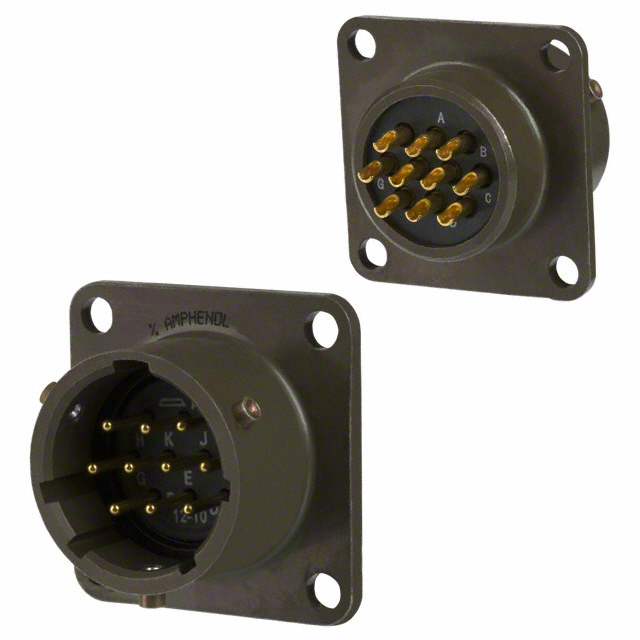

Amphenol Aerospace Operations MS3112E-12-10P	N (Normal)	Bayonet Lock	Panel Mount	Flange	Olive Drab	10	Gold	Solder Cup	10 mm	12 mm	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I
Amphenol Aerospace Operations MS3112E12-8P	N (Normal)	Bayonet Lock	Panel Mount	Flange	Olive Drab	8	Gold	Solder Cup	8 mm	12 mm	Male Pins Receptacle				Unshielded	Aluminum	Environment Resistant		Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C		UL94 V-0	500 V
Amphenol Aerospace Operations MS3112E12-8P	N (Normal)	Bayonet Lock	Panel Mount	Flange	Olive Drab	8	Gold	Solder Cup	8 mm	12 mm	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Neoprene	Copper Alloy	Unshielded	Aluminum	Environment Resistant	Military	Cadmium Olive Drab Chromate	Metal	125 °C	-55 °C	MIL-DTL-26482 Series I
