05K104 Series
Manufacturer: Rosenberger
Beta
⌘K

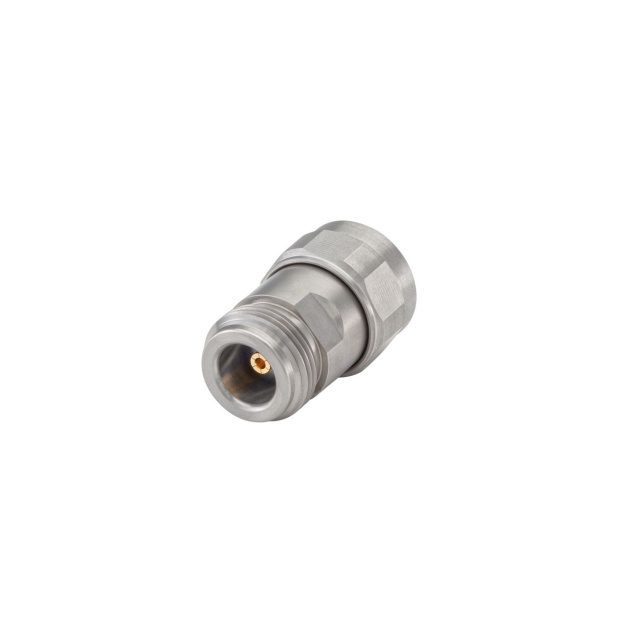

PRECISION N TYPE ADAPTER
| Part | Mating Cycles | Body Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Material | Insertion Loss | Adapter Type | Convert To (Adapter End) | Style | Impedance | Center Contact Plating | Frequency - Max [Max] | Conversion Type | Mounting Type | Convert From (Adapter End) | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 3000 | Stainless Steel | Polyphenylene Ether (PPE) | 85 °C | -40 C | Gold | Beryllium Copper | 0.21 dB | Plug to Jack | SL Plug Male Pin | Straight | 50 Ohms | Gold | 18 GHz | Between Series | Free Hanging (In-Line) | Female Socket N Jack | RJC-N to RJC-SL |
 Rosenberger | Stainless Steel | Polyphenylene Ether (PPE) | 85 °C | -40 C | Beryllium Copper | Plug to Jack | SL Plug Male Pin | Straight | 50 Ohms | Gold | 18 GHz | Between Series | Free Hanging (In-Line) | Female Socket N Jack | RPC-N to RPC-SL |
