90327 Series

Picoflex PF-50, Low Profile, IDT Receptacle, 8 Circuits, White, Gold (Au) Plated, Reeling Option B

Manufacturer: Molex

Catalog

Picoflex PF-50, Low Profile, IDT Receptacle, 8 Circuits, White, Gold (Au) Plated, Reeling Option B

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Cable Termination	Wire Type	Features	Number of Rows	Contact Type	Number of Positions	Color	Connector Type	Pitch	Pitch	Mounting Type	Number of Rows [custom]

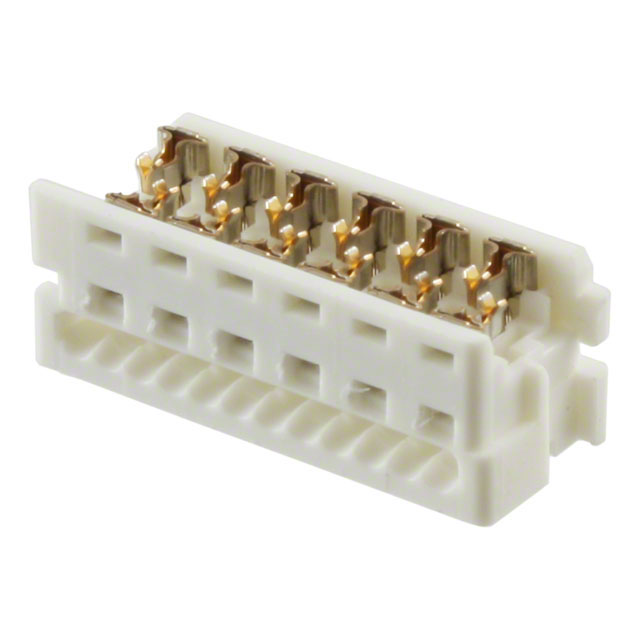

Molex 0903273312	24 µin 30 Áin	0.61 µm 0.76 Ám	Gold Palladium-Nickel	IDC	Ribbon Cable	Feed Through	1	Female Socket	12	White	Receptacle	0.05 in	1.27 mm	Free Hanging (In-Line)

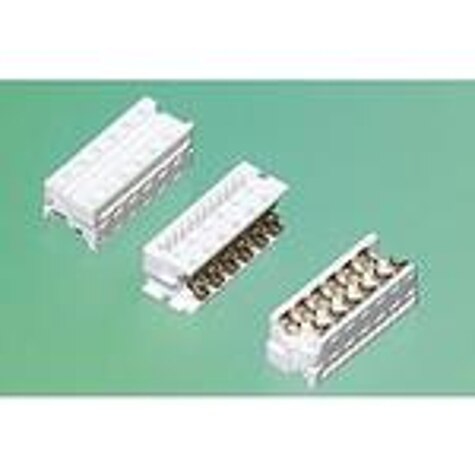

Molex 0903270320	78.7 µin	2 µm	Tin	IDC	Ribbon Cable	Feed Through	1	Female Socket	20	White	Receptacle	0.05 in	1.27 mm	Free Hanging (In-Line)
Molex 903270359	78.7 µin	2 µm	Tin	IDC	Ribbon Cable	Feed Through	1	Female Socket	8	White	Receptacle	0.1 "	2.54 mm	Free Hanging (In-Line)

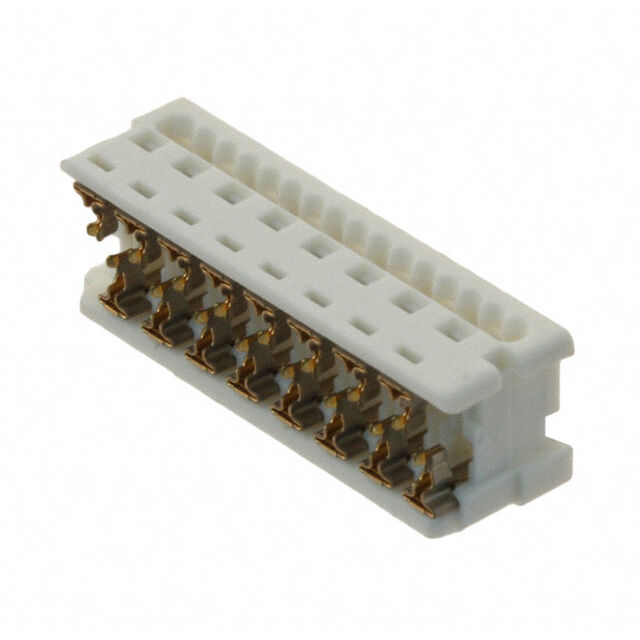

Molex 0903273316	24 µin 30 Áin	0.61 µm 0.76 Ám	Gold Palladium-Nickel	IDC	Ribbon Cable	Feed Through	1	Female Socket	16	White	Receptacle	0.05 in	1.27 mm	Free Hanging (In-Line)

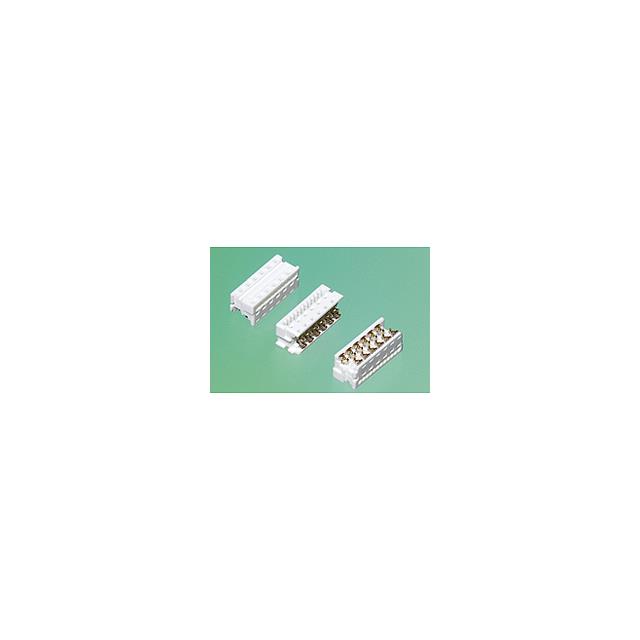

Molex 903270371	78.7 µin	2 µm	Tin	IDC	Ribbon Cable	Feed Through		Female Socket	14	White	Receptacle	0.1 "	2.54 mm	Free Hanging (In-Line)	2
Molex 903270351	78.7 µin	2 µm	Tin	IDC	Ribbon Cable	Feed Through		Female Socket	4	White	Receptacle	0.1 "	2.54 mm	Free Hanging (In-Line)	2
Molex 903273360
Molex 0903273314	24 µin 30 Áin	0.61 µm 0.76 Ám	Gold Palladium-Nickel	IDC	Ribbon Cable	Feed Through	1	Female Socket	14	White	Receptacle	0.05 in	1.27 mm	Free Hanging (In-Line)
Molex 903270365	78.7 µin	2 µm	Tin	IDC	Ribbon Cable	Feed Through		Female Socket	10	White	Receptacle	0.1 "	2.54 mm	Free Hanging (In-Line)	2

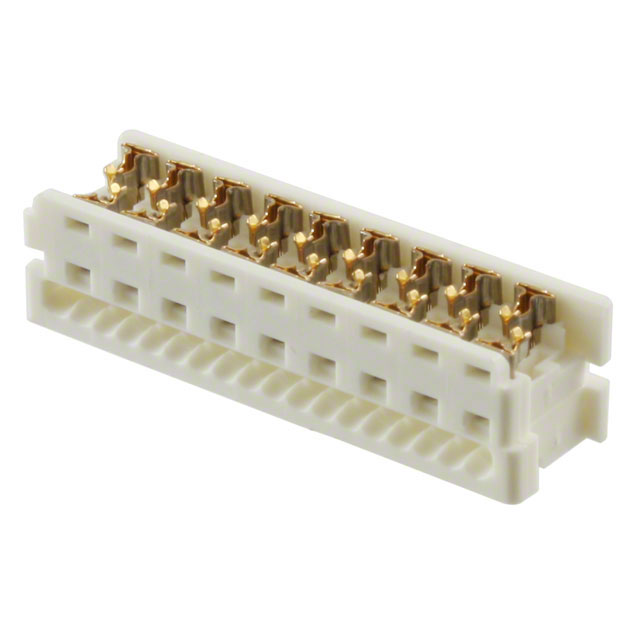

Molex 0903273318	24 µin 30 Áin	0.61 µm 0.76 Ám	Gold Palladium-Nickel	IDC	Ribbon Cable	Feed Through	1	Female Socket	18	White	Receptacle	0.05 in	1.27 mm	Free Hanging (In-Line)

Picoflex PF-50, Low Profile, IDT Receptacle, 8 Circuits, White, Gold (Au) Plated, Reeling Option B
