RL0111 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

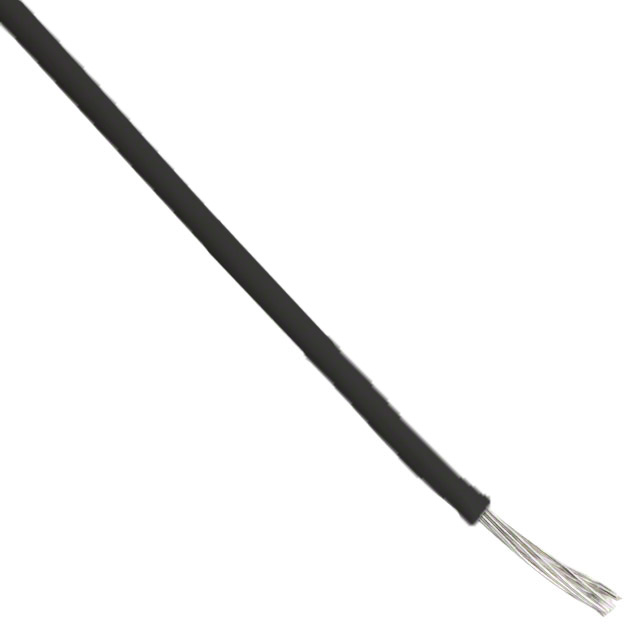

HOOK-UP STRND 1.00MM2 BLK METER

Part	Wire Gauge	Spool Size [x]	Spool Size [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [diameter]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge [custom]	Wire Gauge [diameter]
TE Connectivity AMP Connectors RL0111-1.00-0	1 mm²	5000 m	16404 ft	Polymer	37	0.0071 in	Copper Tinned	1.8 mm	0.071 in	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.18 mm	0.007 in	Hook-Up	Black
TE Connectivity AMP Connectors RL0111-2.50-0	2.5 mm²	5000 m	16404 ft	Polymer			Copper Tinned	2.48 mm	0.098 in	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.28 mm	0.011 "	Hook-Up	Black	0.0118 in	37
TE Connectivity AMP Connectors RL0111-0.75-9	0.75 mm²	5000 m	16404 ft	Polymer			Copper Tinned	1.65 mm	0.065 "	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.18 mm	0.007 in	Hook-Up	White	0.0063 in	37	0.75 mm²
TE Connectivity AMP Connectors RL0111-1.20-0	1.2 mm²	5000 m	16404 ft	Polymer	19		Copper Tinned	2.11 mm	0.083 in	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.2 mm	0.008 in	Hook-Up	Black	0.0114 in			1.2 mm˛
TE Connectivity AMP Connectors RL0111-0.25-9	0.25 mm²	5000 m	16404 ft	Polymer	19		Copper Tinned	1.3 mm	0.051 in	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.18 mm	0.007 in	Hook-Up	White	0.0051 in			0.25 mm˛
TE Connectivity AMP Connectors RL0111-1.50-0	1.5 mm˛	5000 m	16404 ft	Polymer		0.0091 "	Copper Tinned	2.31 mm	0.091 "	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.23 mm	0.009 in	Hook-Up	Black		37
TE Connectivity AMP Connectors RL0111-1.50-9	1.5 mm˛	5000 m	16404 ft	Polymer		0.0091 "	Copper Tinned	2.31 mm	0.091 "	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.23 mm	0.009 in	Hook-Up	White		37
TE Connectivity AMP Connectors RL0111-1.00-9	1 mm²	5000 m	16404 ft	Polymer	37	0.0071 in	Copper Tinned	1.8 mm	0.071 in	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.18 mm	0.007 in	Hook-Up	White
TE Connectivity AMP Connectors RL0111-0.75-0	0.75 mm²	5000 m	16404 ft	Polymer			Copper Tinned	1.65 mm	0.065 "	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.18 mm	0.007 in	Hook-Up	Black	0.0063 in	37	0.75 mm²
TE Connectivity AMP Connectors RL0111-0.50-9	0.5 mm˛	5000 m	16404 ft	Polymer	19	0.0071 in	Copper Tinned	1.45 mm	0.057 "	600 V	Enter Number of Meters in Order Quantity	120 °C	-40 C	0.18 mm	0.007 in	Hook-Up	White
