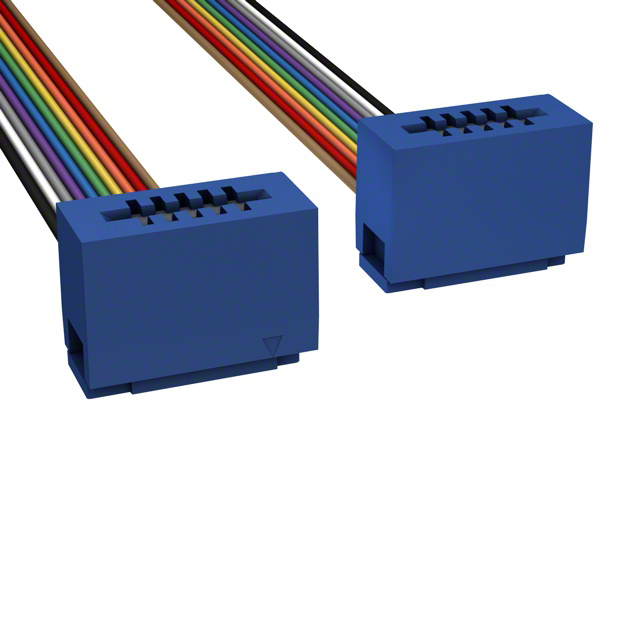

C3EEG-1 Series

Catalog

IDC CABLE - CCE10G/AE10G/CCE10G

Part	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Positions	Shielding	Number of Rows [custom]	Pitch - Connector	Pitch - Connector	Connector Type	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length [x]	Length [x]	Color	Length
CW Industries C3EEG-1036G	0.05 in	1.27 mm	Gold	10	Unshielded	2	0.1 in	2.54 mm	Card Edge to Card Edge	91.44 cm	3 ft	0.25 Ám	10 Áin	IDC
CW Industries C3EEG-1018G	0.05 in	1.27 mm	Gold	10	Unshielded	2	0.1 in	2.54 mm	Card Edge to Card Edge			0.25 Ám	10 Áin	IDC	457.2 mm	1.5 ft
CW Industries C3EEG-1006M	0.05 in	1.27 mm	Gold	10	Unshielded	2	0.1 in	2.54 mm	Card Edge to Card Edge	152.4 mm	0.5 '	0.25 Ám	10 Áin	IDC			Multiple Ribbon	6 "
CW Industries C3EEG-1018M	0.05 in	1.27 mm	Gold	10	Unshielded	2	0.1 in	2.54 mm	Card Edge to Card Edge			0.25 Ám	10 Áin	IDC	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3EEG-1036M	0.05 in	1.27 mm	Gold	10	Unshielded	2	0.1 in	2.54 mm	Card Edge to Card Edge	91.44 cm	3 ft	0.25 Ám	10 Áin	IDC			Multiple Ribbon
CW Industries C3EEG-1006G	0.05 in	1.27 mm	Gold	10	Unshielded	2	0.1 in	2.54 mm	Card Edge to Card Edge	152.4 mm	0.5 '	0.25 Ám	10 Áin	IDC				6 "
