XZMDK54 Series

Manufacturer: SunLED

Catalog

LED RED CLEAR CHIP SMD

Part	Viewing Angle	Lens Style	Lens Color	Mounting Type	Lens Transparency	Configuration	Current - Test	Height (Max) [Max] [z]	Color	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Supplier Device Package	Package / Case	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Lens Size [x]	Lens Size [y]	Height (Max) [z]

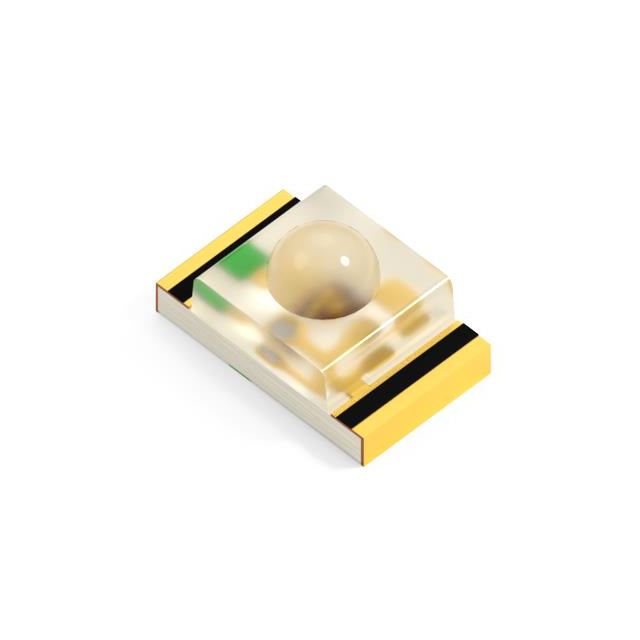

SunLED XZMDK54W-8	40 °	Round with Domed Top	Colorless	Surface Mount	Clear	Standard	20 mA	1.2 mm	Red	630 nm	1.95 V	1640 mcd	Chip LED	0805	645 nm	2 mm	1.25 mm
SunLED XZMDK54W-1	120 °	Rectangle with Flat Top	Colorless	Surface Mount	Clear	Standard	20 mA		Red	630 nm	1.95 V	79 mcd	Chip LED	0805	645 nm	2 mm	1.25 mm	1.2 mm	1.25 mm
SunLED XZMDK54W-4	140 °	Rectangle with Flat Top	Colorless	Surface Mount	Clear		20 mA		Red	630 nm	1.95 V	228 mcd	0805	0805	645 nm	2 mm	1.25 mm	1.3 mm	1.25 mm	0.5 mm
