G800W30 Series

Catalog

PIN HEADER 2.54MM PITCH STR DIP,

Part	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Insulation Height	Insulation Height	Connector Type	Contact Finish - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Contact Material	Overall Contact Length	Overall Contact Length	Fastening Type	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Shrouding	Mounting Type	Insulation Material	Material Flammability Rating	Termination

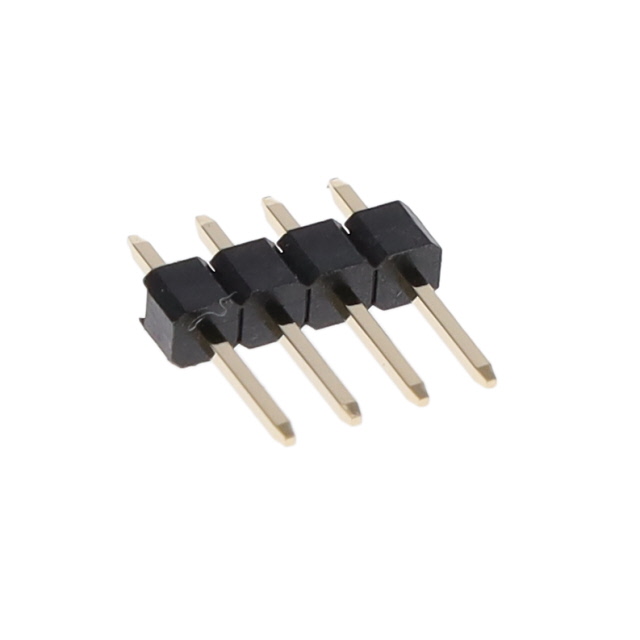

Amphenol ICC (Commercial Products) G800W304018EU	Flash	Square	All	0.098 "	2.5 mm	Header	Gold	1	0.1 "	2.54 mm	Black	Male Pin	105 ░C	-25 °C	Flash	4	Gold	Brass	11.6 mm	0.457 in	Push-Pull	3 A	0.24 in	6.1 mm	0.118 in	3 mm	Unshrouded	Through Hole	Nylon 6T Polyamide (PA6T)	UL94 V-0	Solder

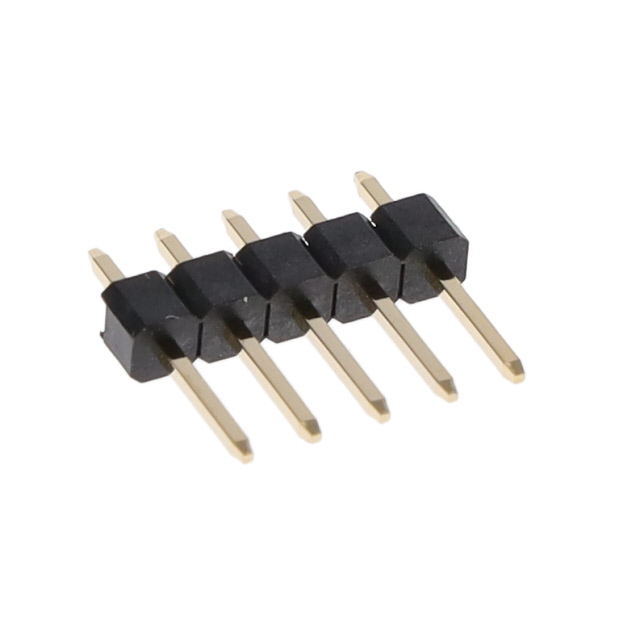

Amphenol ICC (Commercial Products) G800W303018EU	Flash	Square	All	0.098 "	2.5 mm	Header	Gold	1	0.1 "	2.54 mm	Black	Male Pin	105 ░C	-25 °C	Flash	5	Gold	Brass	11.6 mm	0.457 in	Push-Pull	3 A	0.24 in	6.1 mm	0.118 in	3 mm	Unshrouded	Through Hole	Nylon 6T Polyamide (PA6T)	UL94 V-0	Solder

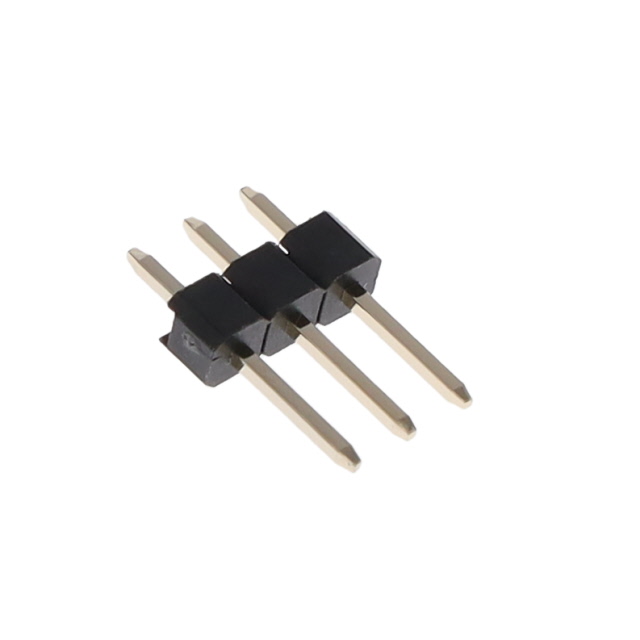

Amphenol ICC (Commercial Products) G800W305018EU	Flash	Square	All	0.098 "	2.5 mm	Header	Gold	1	0.1 "	2.54 mm	Black	Male Pin	105 ░C	-25 °C	Flash		Gold	Brass	11.6 mm	0.457 in	Push-Pull	3 A	0.24 in	6.1 mm	0.118 in	3 mm	Unshrouded	Through Hole	Nylon 6T Polyamide (PA6T)	UL94 V-0	Solder
