LD40W Series

Catalog

LED DRIVER AC/DC CC 18-54V 700MA

Part	Voltage - Output (Max)	Voltage - Output (Min)	Power (Watts)	Dimming	Current - Output (Max)	Termination Style	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Ratings	Features	Efficiency	Voltage - Isolation	Topology	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (Min)	Type	Voltage - Input (Max)	Approval Agency	Mounting Type	Standard Number	Voltage - Output	Weight	Dimming (Min)	Dimming (Max)

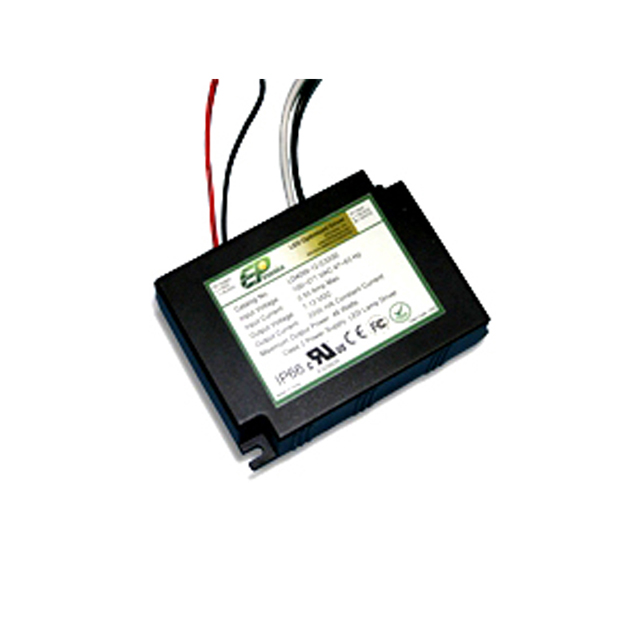

EPtronics, Inc. LD40W-54-C0700	54 V	18 V	40 W	Analog PWM	700 mA	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	85 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount
EPtronics, Inc. LD40W-24-C1670	24 V	8 V	40 W	Analog PWM	1.67 A	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	85 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount
EPtronics, Inc. LD40W-24			40 W	Non-Dimmable	1.67 A	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	85 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Voltage	305 V	CE cURus FCC	Chassis Mount	C22.2 UL 8750	24 V	0.694 lb
EPtronics, Inc. LD40W-18-C2200	18 V	6 V	40 W	Analog PWM	2.2 A	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	84 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount
EPtronics, Inc. LD40W-30-C1400-RD	30 V	15 V	40 W		1.4 A	Wire Leads	1	-40 °C	60 °C	IP66	OCP OVP SCP	85 %	2500 Vrms	AC DC Converter	1.26 in	3.78 in	2.8 in	100 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount	C22.2 UL 8750		0.694 lb	0 V	10 V
EPtronics, Inc. LD40W-36-C1100	36 V	12 V	40 W	Analog PWM	1.1 A	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	85 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount
EPtronics, Inc. LD40W-12			40 W	Non-Dimmable	3.33 A	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	83 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Voltage	305 V	CE cURus FCC	Chassis Mount	C22.2 UL 8750	12 V	0.694 lb
EPtronics, Inc. LD40W-45-C0900-RD	45 V	23 V	40 W		900 mA	Wire Leads	1	-40 °C	60 °C	IP66	OCP OVP SCP	85 %	2500 Vrms	AC DC Converter	1.26 in	3.78 in	2.8 in	100 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount	C22.2 UL 8750		0.694 lb	0 V	10 V
EPtronics, Inc. LD40W-48-C0830-RD	48 V	24 V	40 W		830 mA	Wire Leads	1	-40 °C	60 °C	IP66	OCP OVP SCP	85 %	2500 Vrms	AC DC Converter	1.26 in	3.78 in	2.8 in	100 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount	C22.2 UL 8750		0.694 lb	0 V	10 V
EPtronics, Inc. LD40W-24-C1400-RD	24 V	8 V	40 W	Analog PWM	1.4 A	Wire Leads	1	-30 °C	60 °C	IP66	OCP OVP SCP	85 %	3750 VDC	AC DC Converter	1.26 in	3.78 in	2.8 in	90 VAC	Constant Current	305 V	CE cURus FCC	Chassis Mount
