8641 Series
Manufacturer: Belden Inc.
Beta
⌘K

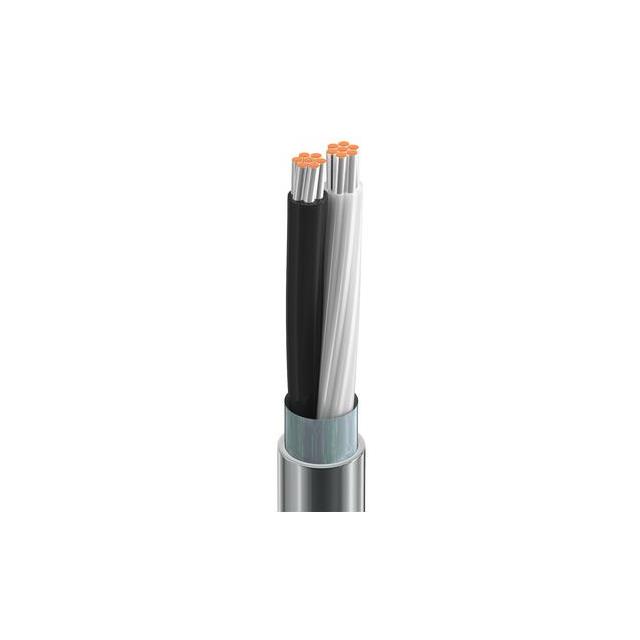

CABLE 2COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Conductor Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket (Insulation) Material | Features | Wire Gauge | Shield Type | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Tinned | Polyethylene (PE) | 7 | 32 AWG | Multi-Conductor | Chrome | 0.635 mm | 0.025 in | 80 °C | -20 ░C | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Drain Wire | 24 AWG | Foil | 2 | 300 VDC | 4.27 mm | 0.168 in | ||
Belden Inc. | Aluminum | 100 % | Copper Tinned | Polyethylene (PE) | 7 | 32 AWG | Multi-Conductor | Chrome | 0.635 mm | 0.025 in | 80 °C | -20 ░C | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Drain Wire | 24 AWG | Foil | 2 | 300 VDC | 4.27 mm | 0.168 in | 152.4 m | 500 ft |
