772-E25 Series

Catalog

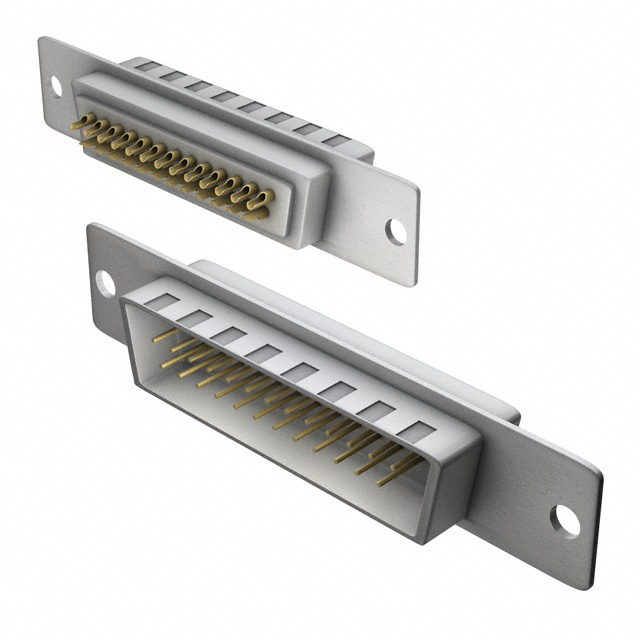

D SUB CONNECTOR, SEAL-D, SEAL-D 772-E SERIES, DB, PLUG, 25, STEEL, SOLDER ROHS COMPLIANT: YES

Part	Color	Dielectric Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Contact Finish Thickness	Material Flammability Rating	Flange Feature	Connector Style	Connector Type	Number of Rows [custom]	Ingress Protection	Number of Positions	Features	Shell Material, Finish	Mounting Type	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Finish	Termination
NorComp Inc. 772-E25-103R001	White	Polybutylene Terephthalate (PBT)	Brass	100 °C	-50 °C	19.5 AWG	26 AWG	Signal	Flash	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub	Plug Male Pins	2	IP67 - Dust Tight Waterproof	25	Grounding Indents	Nickel Plated Steel	Panel Mount	5 A	B DB	3	Gold

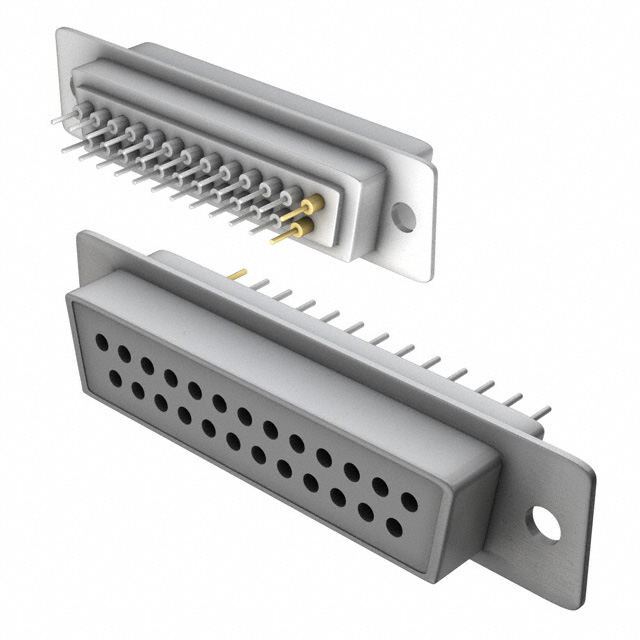

NorComp Inc. 772-E25-213R001	White	Polyamide (PA6T) Nylon 6T	Brass	100 °C	-50 °C			Signal	Flash	UL94 V-0	Housing/Shell (Unthreaded)	D-Sub	Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	25		Nickel Plated Steel	Panel Mount Through Hole	5 A	B DB	3	Gold	Solder
NorComp Inc. 772-E25-103R011	White	Polybutylene Terephthalate (PBT)	Brass	100 °C	-50 °C	19.5 AWG	26 AWG	Signal	Flash	UL94 V-0	Cable Side (4-40)	D-Sub	Plug Male Pins	2	IP67 - Dust Tight Waterproof	25	Grounding Indents	Nickel Plated Steel	Panel Mount	5 A	B DB	3	Gold

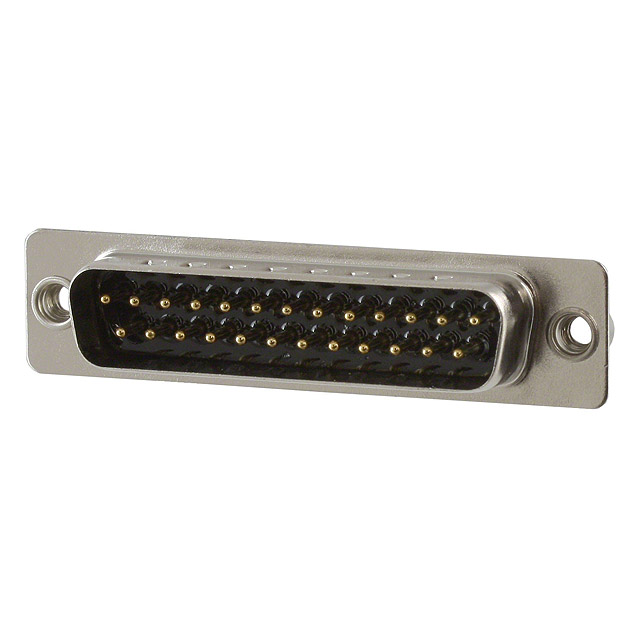

NorComp Inc. 772-E25-113R011	White	Polyamide (PA6T) Nylon 6T	Brass	100 °C	-50 °C			Signal	Flash	UL94 V-0	Board Side (4-40)	D-Sub	Plug Male Pins	2	IP67 - Dust Tight Waterproof	25	Grounding Indents	Nickel Plated Steel	Panel Mount Through Hole	5 A	B DB	3	Gold	Solder

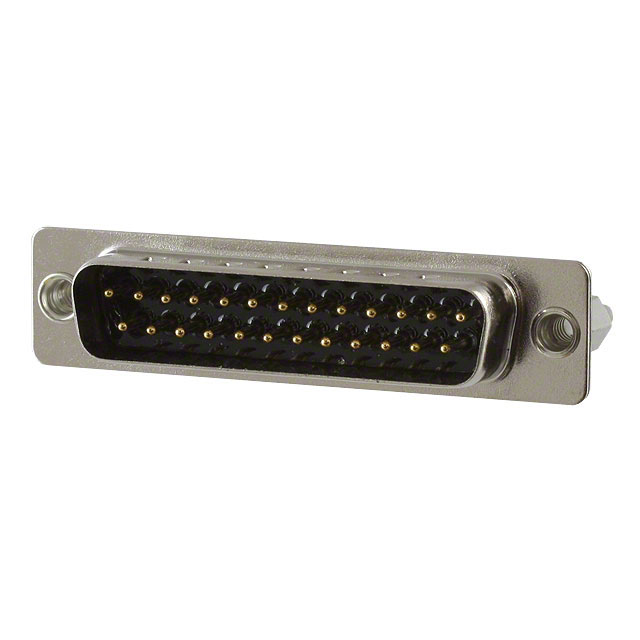

NorComp Inc. 772-E25-113R051	White	Polyamide (PA6T) Nylon 6T	Brass	100 °C	-50 °C			Signal	Flash	UL94 V-0	Board Side (4-40)	D-Sub	Plug Male Pins	2	IP67 - Dust Tight Waterproof	25	Board Lock Grounding Indents	Nickel Plated Steel	Panel Mount Through Hole	5 A	B DB	3	Gold	Solder
