M3206 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

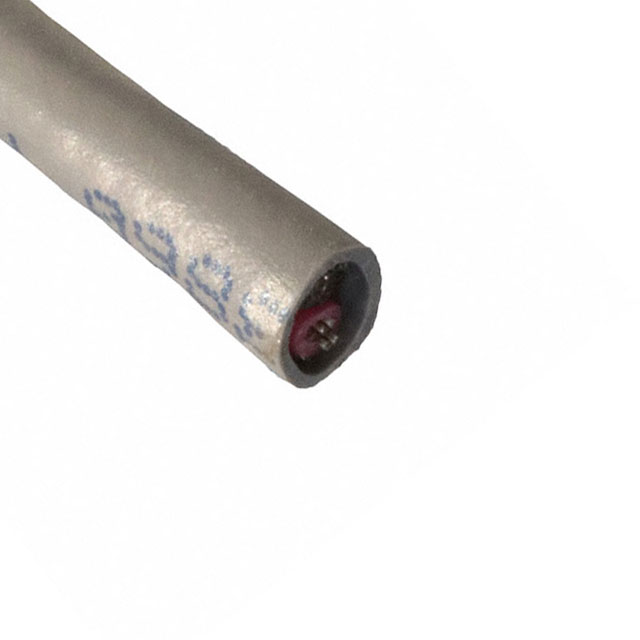

CABLE 2CON 20AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket Color | Wire Gauge | Cable Type | Voltage | Number of Conductors | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Length [x] | Length [x] | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 0.205 in | 5.21 mm | 80 °C | -20 ░C | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Slate | 20 AWG | Multi-Conductor | 300 VDC | 2 | Braid | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2095 | 100 ft | 30.5 m | Copper Tinned | ||
 ALPHA WIRE | Copper Tinned | 85 % | 0.205 in | 5.21 mm | 80 °C | -20 ░C | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Slate | 20 AWG | Multi-Conductor | 300 VDC | 2 | Braid | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2095 | Copper Tinned | 304.8 m | 1000 ft |
