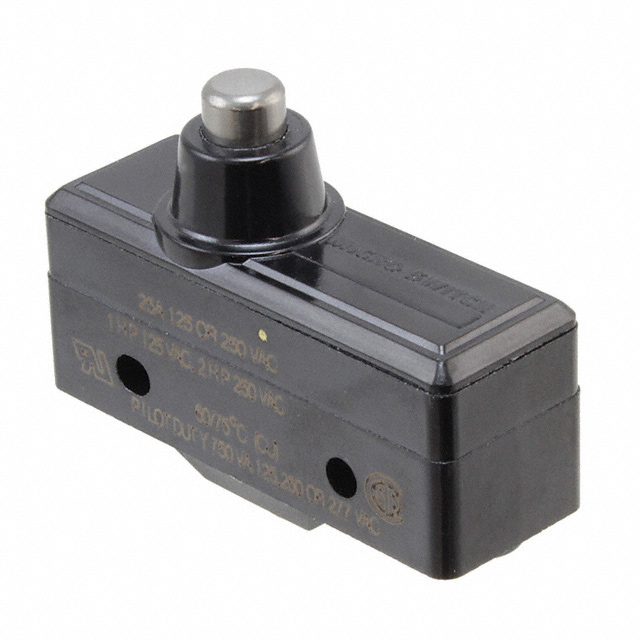

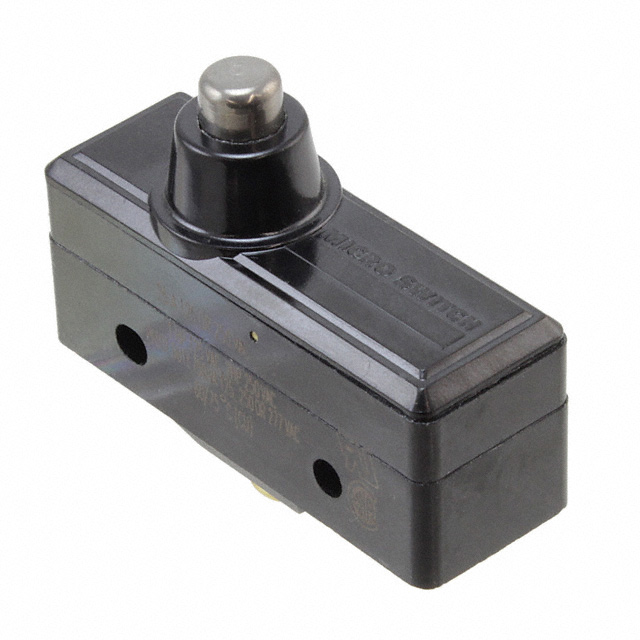

YE-2RB Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION N.O. SPST PLUNGER 25A 250VAC 1491.4VA 6.12N SCREW MOUNT SCREW
| Part | Mounting Type | Release Force | Mechanical Life | Operating Position | Operating Position | Circuit | Actuator Type | Switch Function | Differential Travel | Differential Travel | Current Rating (Amps) | Operating Force [Max] | Operating Force [Min] | Termination Style | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | 283 gf | 20000000 Cycles | 1.03 " | 26.2 mm | SPST-NO | Round (Pin Plunger) | Off-Mom | 0.007 in | 0.18 mm | 25 A | 624 gf | 397 gf | Screw Terminal | 125 V | 2.4 mm | 0.094 " | -55 C | 85 °C | 0.05 in | 1.27 mm |
 Honeywell Sensing and Productivity Solutions | Chassis Mount | 283 gf | 20000000 Cycles | 1.03 " | 26.2 mm | SPST-NO | Round (Pin Plunger) | Off-Mom | 0.007 in | 0.18 mm | 25 A | 624 gf | 397 gf | Screw Terminal | 125 V | 2.4 mm | 0.094 " | -55 C | 85 °C | 0.05 in | 1.27 mm |
