796861 Series

Catalog

2 POS TERMI-BLOK PLUG VERTICAL

Part	Torque - Screw	Torque - Screw	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Screw Size	Material Flammability Rating	Insulation Height	Insulation Height	Type	Features	Color	Positions Per Level	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Number of Positions	Contact Mating Finish	Plug Wire Entry [custom]	Termination Style	Mounting Type

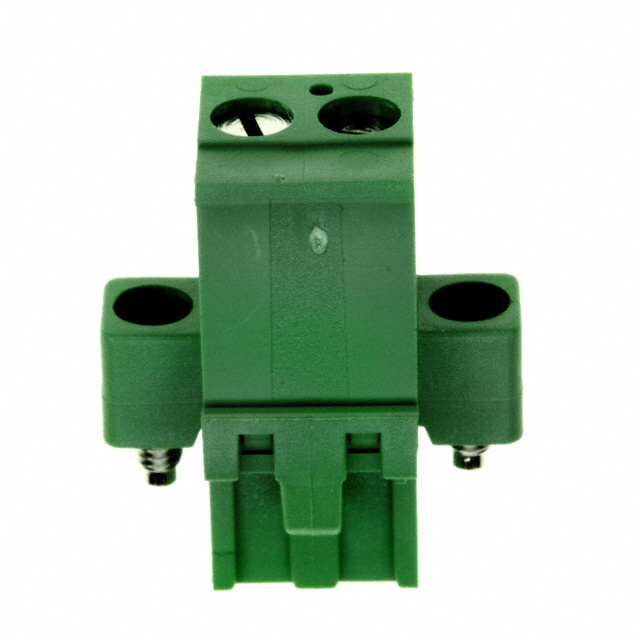

TE Connectivity AMP Connectors 796861-2	7 Lb-In	0.79 Nm	Phosphor Bronze	7.5 mm	6 mm	M3	UL94 V-0	0.984 "	25 mm	Plug Female Sockets	Mating Flange Retention Latches (Non-Wire Side)	Green	2	5.08 mm	0.2 in	30 AWG	12 AWG	1	-40 C	110 °C	300 V	2	Tin	270 °	Screw - Rising Cage Clamp	Free Hanging (In-Line)

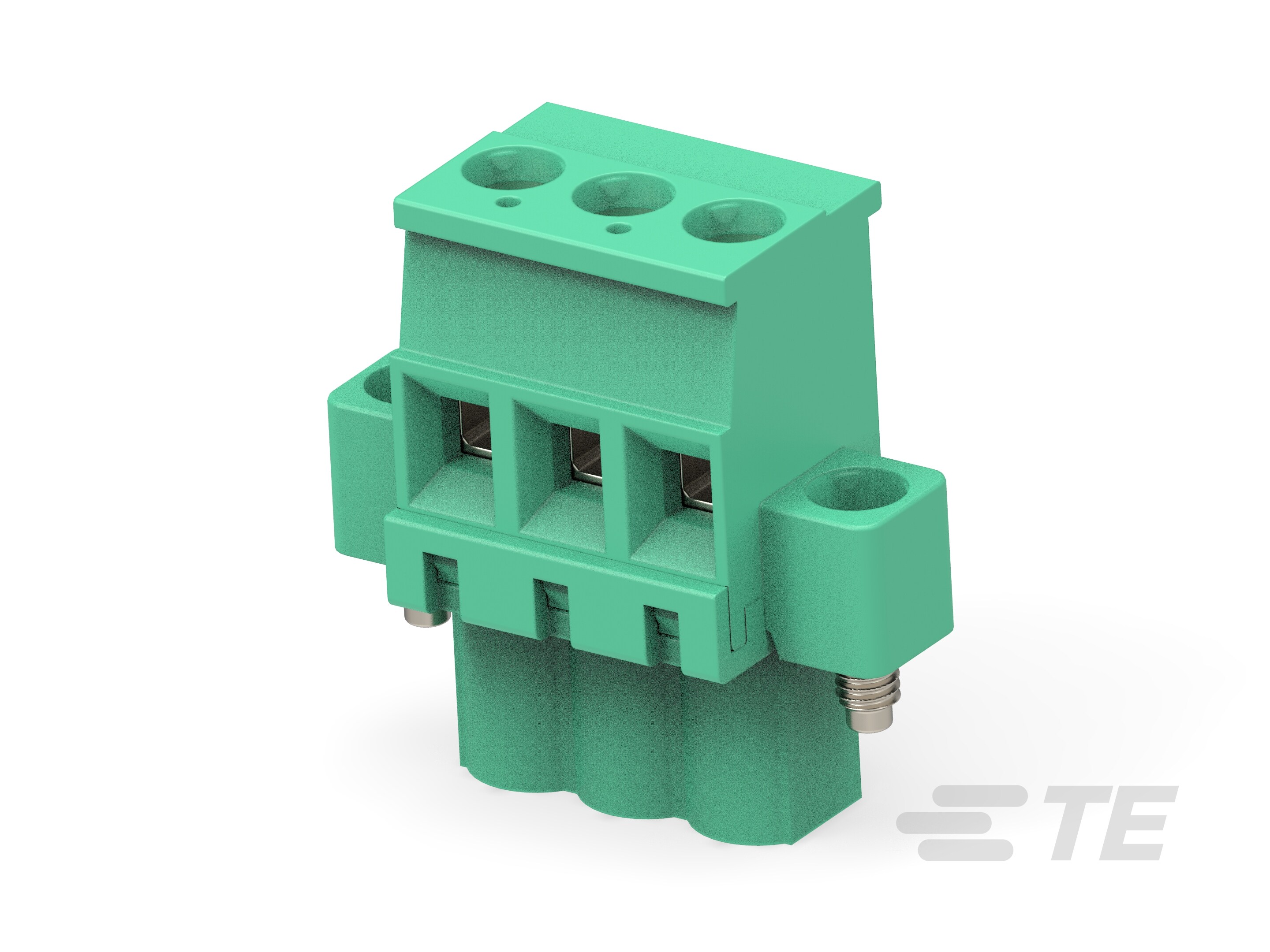

TE Connectivity AMP Connectors 796861-3	7 Lb-In	0.79 Nm	Phosphor Bronze	7.5 mm	6 mm	M3	UL94 V-0	0.984 "	25 mm	Plug Female Sockets	Mating Flange Retention Latches (Non-Wire Side)	Green	3	5.08 mm	0.2 in	30 AWG	12 AWG	1	-40 C	110 °C	300 V		Tin	270 °	Screw - Rising Cage Clamp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-796861-1	7 Lb-In	0.79 Nm	Phosphor Bronze	7.5 mm	6 mm	M3	UL94 V-0	0.984 "	25 mm	Plug Female Sockets	Mating Flange Retention Latches (Non-Wire Side)	Green	11	5.08 mm	0.2 in	30 AWG	12 AWG	1	-40 C	110 °C	300 V	11	Tin	270 °	Screw - Rising Cage Clamp	Free Hanging (In-Line)
