PC280LG Series
Manufacturer: Johnson Motor
Beta
⌘K
LOW VOLTAGE DC MOTORS
| Part | Weight [custom] | Weight [custom] | Power - Rated | Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Voltage - Rated | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Motor Type | Function | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Termination Style | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

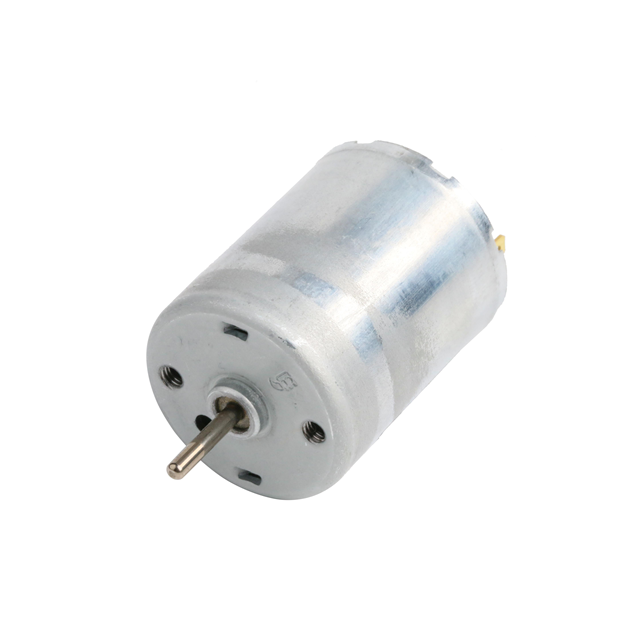

 Johnson Motor | 48.19 g | 0.106 lb | 2.2 W | DC Motor | 0.32 oz-in | 2.3 mNm | 17 mm | 0.669 in | 3 VDC | 4800 RPM | 55 °C | -10 °C | 0.079 in | 2 mm | Brushed | Standard | 25.4 mm | Round | 1 " | Solder Tab | ||||

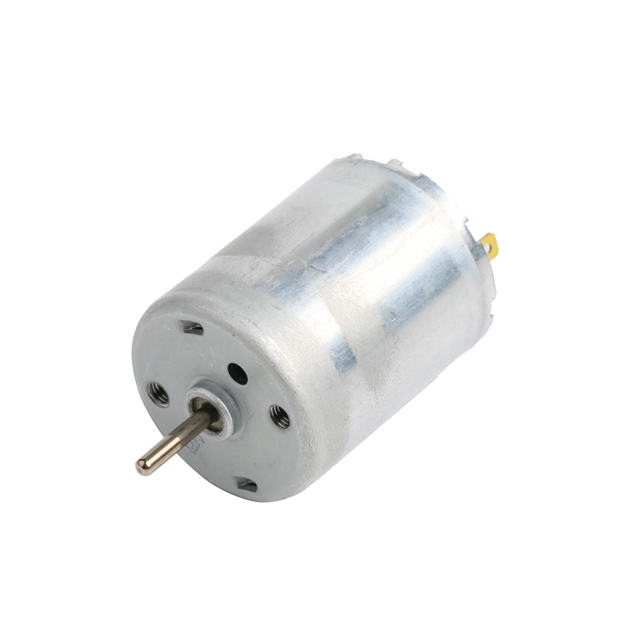

Johnson Motor | 7.4 W | DC Motor | 17 mm | 0.669 in | 18 VDC | 55 °C | -10 °C | 0.079 in | 2 mm | Brushed | Standard | 25.4 mm | Round | 1 " | Solder Tab | 0.64 oz-in | 4.52 mNm | |||||||
 Johnson Motor | 51.03 g | 0.113 lb | 2.9 W | DC Motor | 0.32 oz-in | 2.3 mNm | 17 mm | 0.669 in | 12 VDC | 5200 RPM | 55 °C | -10 °C | 0.079 in | 2 mm | Brushed | Standard | 25.4 mm | Round | 1 " | Solder Tab | 0.48 oz-in | 3.42 mNm | 7.65 mm | 0.301 in |
