10055293 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

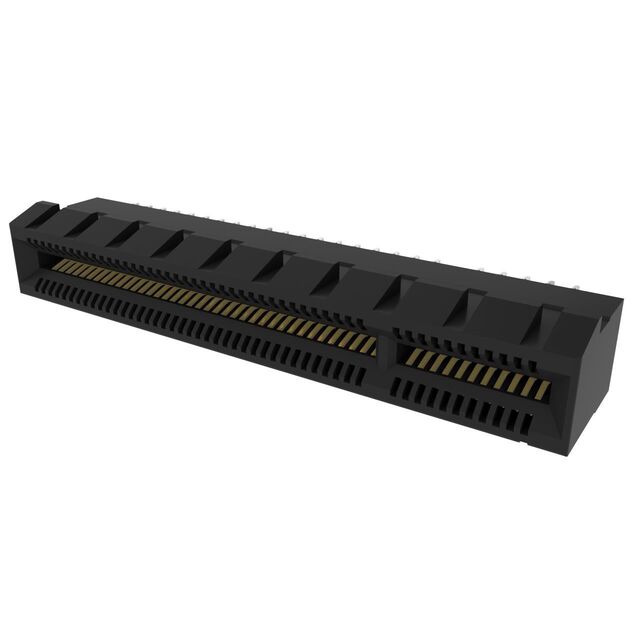

CONN PCI EXP FMALE 98POS 0.039
| Part | Material - Insulation | Read Out | Color | Contact Material | Number of Positions | Contact Type | Card Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Termination | Gender | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Mounting Type | Number of Rows [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Glass Filled Nylon Polyamide (PA) | Dual | Black | Copper Alloy | 98 | Cantilever | PCI Express™ | Board Guide Locking Ramp | -55 C | 85 °C | 30 Áin | 0.76 Ám | 1.57 mm | 0.062 in | Press-Fit | Female | 11 | 38 | 1 mm | 0.039 in | Through Hole | 2 | Gold |
 Amphenol ICC (FCI) | Glass Filled Nylon Polyamide (PA) | Dual | Black | Copper Alloy | 98 | Cantilever | PCI Express™ | Board Guide Locking Ramp | -55 C | 85 °C | 30 Áin | 0.76 Ám | 1.57 mm | 0.062 in | Solder Staggered | Female | 11 | 38 | 1 mm | 0.039 in | Through Hole | 2 | Gold |
 Amphenol ICC (FCI) | Glass Filled Nylon Polyamide (PA) | Dual | Black | Copper Alloy | 98 | Cantilever | PCI Express™ | Board Guide Locking Ramp | -55 C | 85 °C | 30 Áin | 0.76 Ám | 1.57 mm | 0.062 in | Press-Fit | Female | 11 | 38 | 1 mm | 0.039 in | Through Hole | 2 | Gold |
