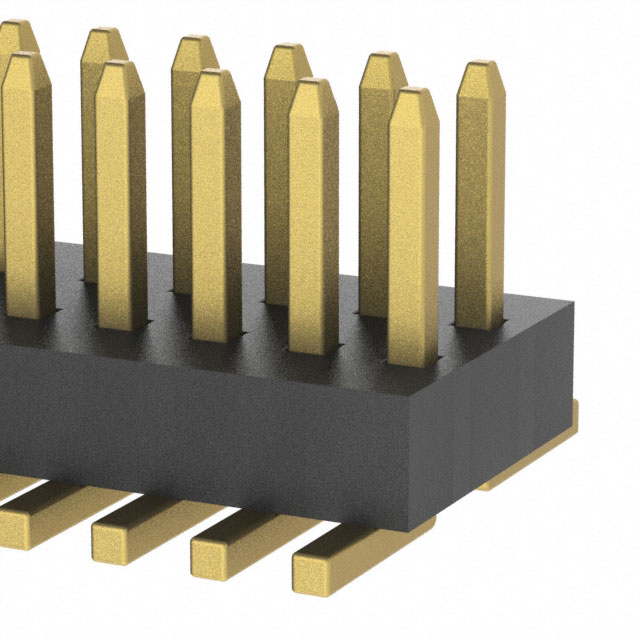

SPH2 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER SMD 16POS 0.8MM

Part	Contact Finish Thickness - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Shrouding	Contact Shape	Insulation Color	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Insulation Material	Contact Type	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Voltage Rating
Adam Tech SPH2-16-U-SMT	Flash	Solder	-40 C	105 ░C	2	0.047 in	1.2 mm	Push-Pull	Gold	1 mm	0.039 in	UL94 V-0	Unshrouded	Square	Black	Flash	Phosphor Bronze	16	Thermoplastic	Male Pin	Gold	Header	All	Surface Mount	0.8 mm	0.031 in	0.079 in	2 mm	250 VAC

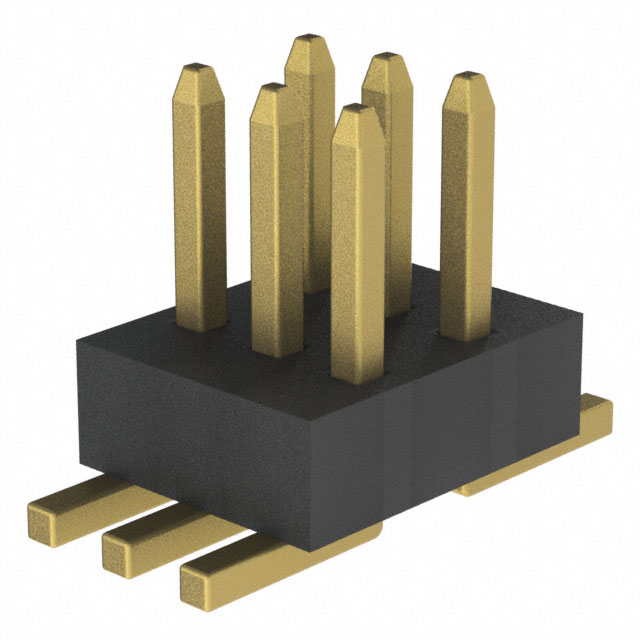

Adam Tech SPH2-06-U-SMT	Flash	Solder	-40 C	105 ░C	2	0.047 in	1.2 mm	Push-Pull	Gold	1 mm	0.039 in	UL94 V-0	Unshrouded	Square	Black	Flash	Phosphor Bronze	6	Thermoplastic	Male Pin	Gold	Header	All	Surface Mount	0.8 mm	0.031 in	0.079 in	2 mm	250 VAC
Adam Tech SPH2-20-U-SMT	Flash	Solder	-40 C	105 ░C	2	0.047 in	1.2 mm	Push-Pull	Gold	1 mm	0.039 in	UL94 V-0	Unshrouded	Square	Black	Flash	Phosphor Bronze	20	Thermoplastic	Male Pin	Gold	Header	All	Surface Mount	0.8 mm	0.031 in	0.079 in	2 mm	250 VAC

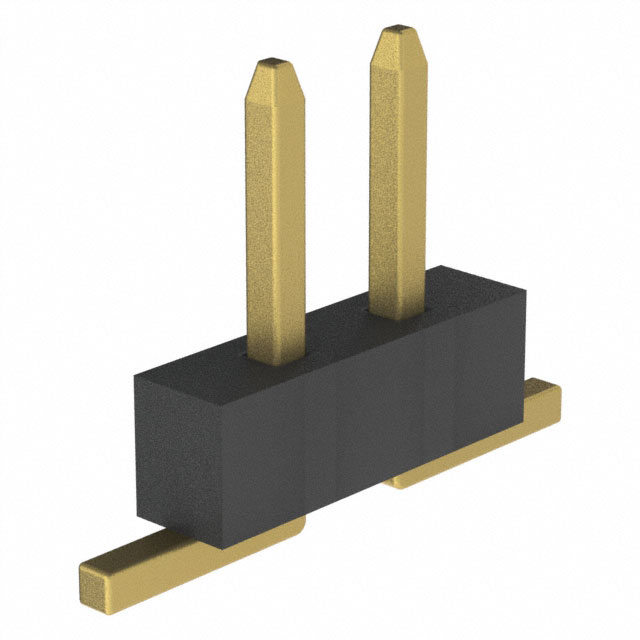

Adam Tech SPH2-02-U-SMT	Flash	Solder	-40 C	105 ░C	2	0.047 in	1.2 mm	Push-Pull	Gold	1 mm	0.039 in	UL94 V-0	Unshrouded	Square	Black	Flash	Phosphor Bronze	2	Thermoplastic	Male Pin	Gold	Header	All	Surface Mount	0.8 mm	0.031 in	0.079 in	2 mm	250 VAC
Adam Tech SPH2-18-U-SMT	Flash	Solder	-40 C	105 ░C	2	0.047 in	1.2 mm	Push-Pull	Gold	1 mm	0.039 in	UL94 V-0	Unshrouded	Square	Black	Flash	Phosphor Bronze	18	Thermoplastic	Male Pin	Gold	Header	All	Surface Mount	0.8 mm	0.031 in	0.079 in	2 mm	250 VAC
Adam Tech SPH2-12-U-SMT	Flash	Solder	-40 C	105 ░C	2	0.047 in	1.2 mm	Push-Pull	Gold	1 mm	0.039 in	UL94 V-0	Unshrouded	Square	Black	Flash	Phosphor Bronze	12	Thermoplastic	Male Pin	Gold	Header	All	Surface Mount	0.8 mm	0.031 in	0.079 in	2 mm	250 VAC
