DLFL Series

Catalog

CMC 8A 2LN TH

Part	DC Resistance (DCR) (Max) [Max]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Current Rating (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage Rating - AC

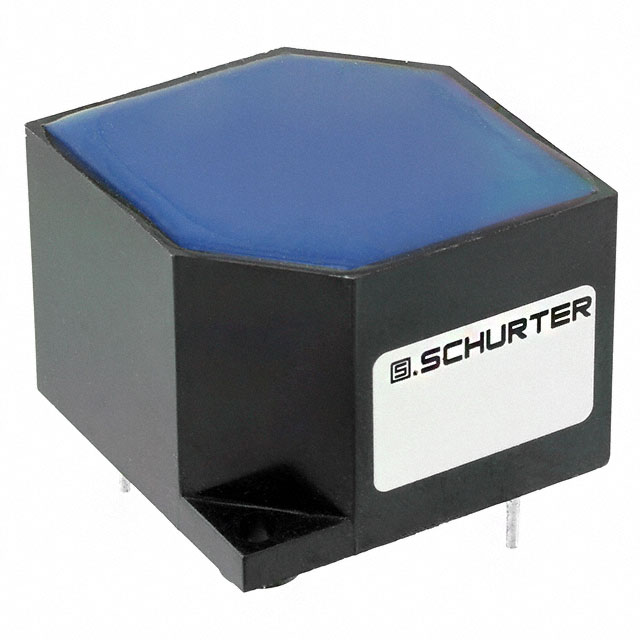

SCHURTER Inc. DLFL-0125-08D5	54 mOhm	2	100 °C	-25 °C	Radial	Through Hole	8 A	40 mm	1.575 in	1.575 "	40 mm	440 V

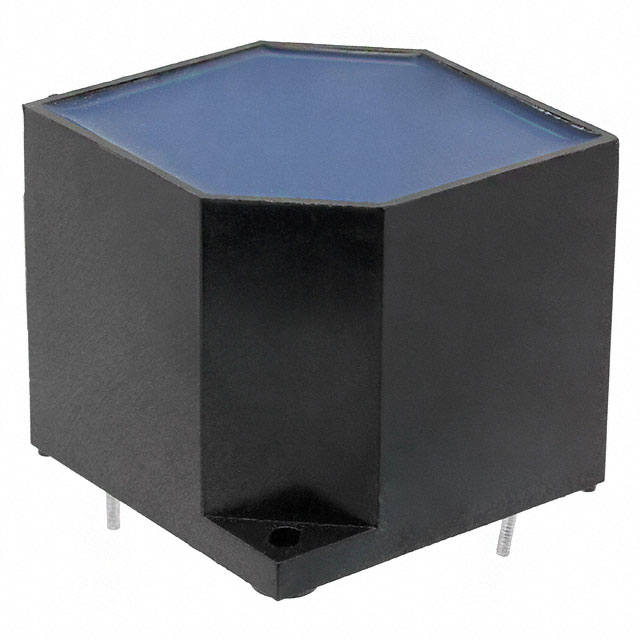

SCHURTER Inc. DLFL-0147-25D2	10 mOhm	2	100 °C	-25 °C	Radial	Through Hole	25 A	50 mm	1.969 "	1.969 in	50 mm	440 V

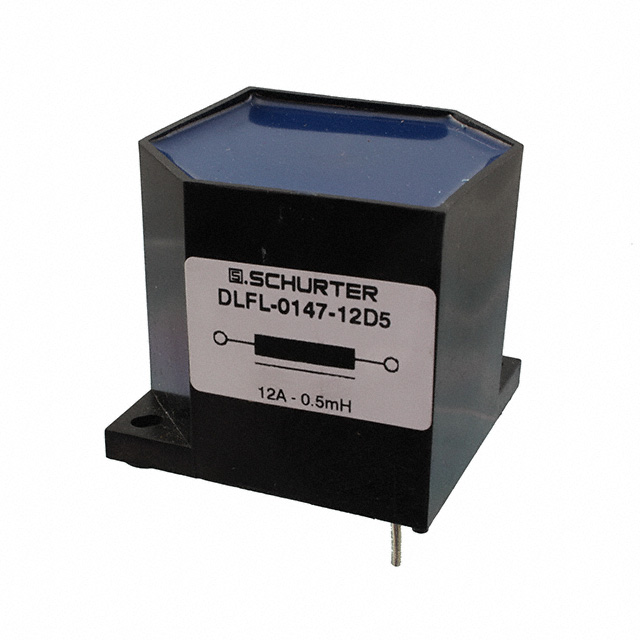

SCHURTER Inc. DLFL-0147-12D5	38 mOhm	2	100 °C	-25 °C	Radial	Through Hole	12 A	50 mm	1.969 "	1.969 in	50 mm	440 V
SCHURTER Inc. DLFL-0147-16D3	25 mOhm	2	100 °C	-25 °C	Radial	Through Hole	16 A	50 mm	1.969 "	1.969 in	50 mm	440 V
