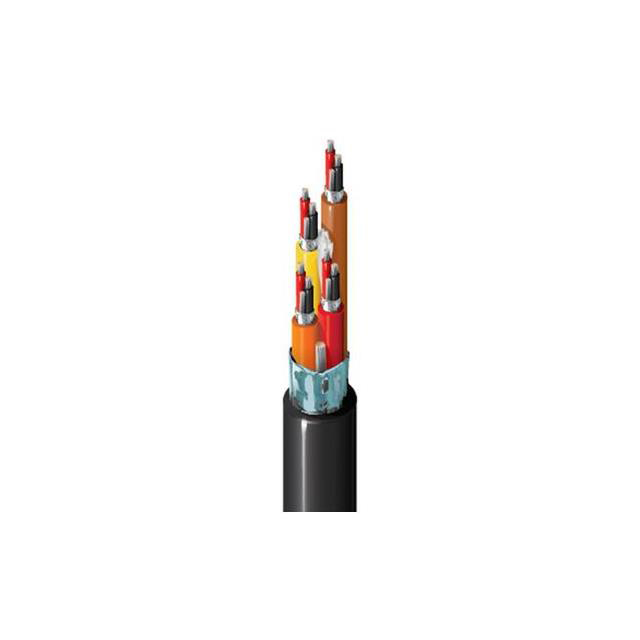

1916A Series
Manufacturer: Belden Inc.
Beta
⌘K
16 #24 JKTD PRS PVC
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Features | Cable Type | Shield Type | Conductor Insulation | Conductor Material | Jacket Color | Jacket (Insulation) Material | Usage | Number of Conductors | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | Copper Bare | 0.683 in | 17.35 mm | -20 ░C | 60 °C | 304.8 m | 1000 ft | 41 | 40 | 24 AWG | Drain Wire | Multi-Pair | Braid | Polypropylene (PP) | Copper Bare | Black | Poly-Vinyl Chloride (PVC) | Audio | 32 | 300 VDC |
Belden Inc. | 95 % | Copper Bare | 0.683 in | 17.35 mm | -20 ░C | 60 °C | 152.4 m | 500 ft | 41 | 40 | 24 AWG | Drain Wire | Multi-Pair | Braid | Polypropylene (PP) | Copper Bare | Black | Poly-Vinyl Chloride (PVC) | Audio | 32 | 300 VDC |
Belden Inc. | 95 % | Copper Bare | 0.683 in | 17.35 mm | -20 ░C | 60 °C | 76.2 m | 250 ft | 41 | 40 | 24 AWG | Drain Wire | Multi-Pair | Braid | Polypropylene (PP) | Copper Bare | Black | Poly-Vinyl Chloride (PVC) | Audio | 32 | 300 VDC |
