087911 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Contact Shape	Number of Positions	Number of Rows	Shrouding	Number of Positions Loaded	Mounting Type	Contact Material	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Termination	Contact Finish - Post	Contact Length - Mating	Contact Length - Post
Molex 0879111011	Square	10	2	Unshrouded	All	Through Hole Right Angle	Copper Alloy	Breakaway Header	6.1 mm	0.24 in	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	Push-Pull	3.18 mm	0.125 in	UL94 V-0	Black	74.8 Áin	1.9 Ám	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm	Board to Board Cable	Solder	Tin
Molex 0879111207	Square	12	2	Unshrouded	All	Through Hole Right Angle	Copper Alloy	Breakaway Header	8.13 mm		Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	Push-Pull		0.11 in	UL94 V-0	Black	78.7 çin	2 çm	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm	Board to Board Cable	Solder	Tin	0.32 in	2.79 mm
Molex 0879111400	Square	14	2	Unshrouded	All	Through Hole Right Angle	Copper Alloy	Breakaway Header			Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in		Push-Pull			UL94 V-0	Black			Automotive General Purpose Lighting Medical Telecommunications			Board to Board Cable	Solder
Molex 0879117211	Square	72	2	Unshrouded	All	Through Hole Right Angle	Copper Alloy	Breakaway Header	6.1 mm	0.24 in	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	Push-Pull	3.18 mm	0.125 in	UL94 V-0	Black	74.8 Áin	1.9 Ám	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm	Board to Board Cable	Solder	Tin

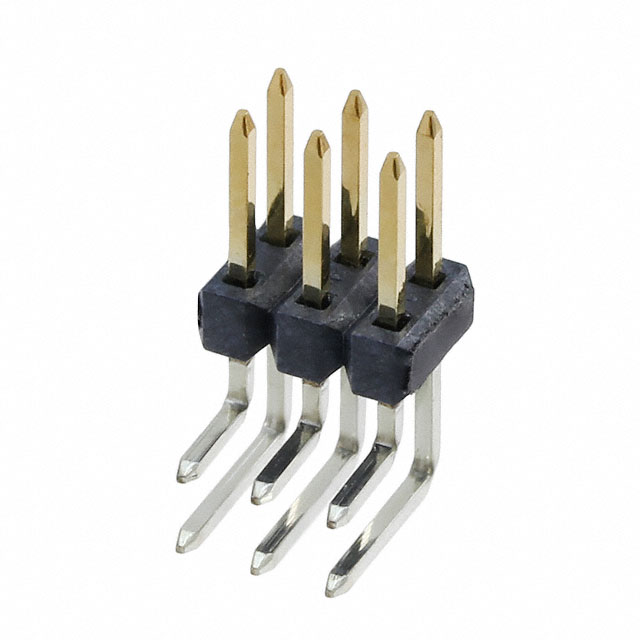

Molex 0879110611	Square	6	2	Unshrouded	All	Through Hole Right Angle	Copper Alloy	Breakaway Header	6.1 mm	0.24 in	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	Push-Pull	3.18 mm	0.125 in	UL94 V-0	Black	74.8 Áin	1.9 Ám	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm	Board to Board Cable	Solder	Tin
