R14370 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

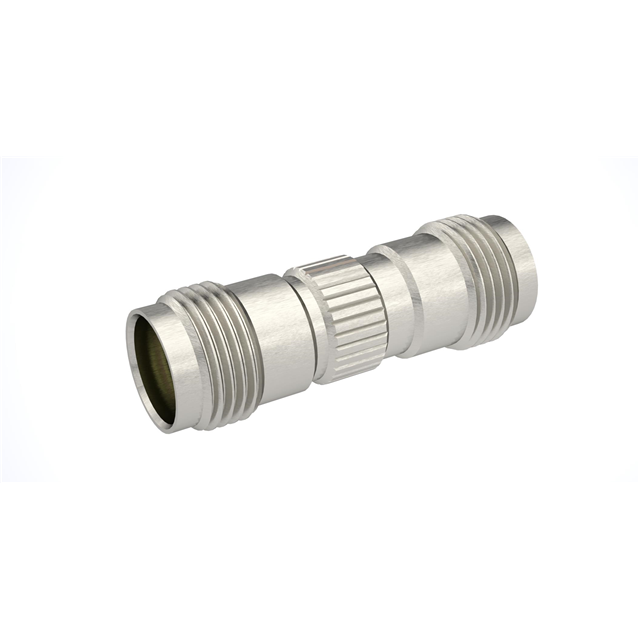

TNC / FEMALE-FEMALE ADAPTER
| Part | Body Finish | Center Contact Material | Body Material | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Adapter Series | Convert To (Adapter End) | Frequency - Max [Max] | Conversion Type | Mounting Type | Impedance | Adapter Type | Convert From (Adapter End) | Center Gender | Center Contact Plating | Style | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | Beryllium Copper | Brass | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | TNC to TNC | Female Socket TNC Jack | 11 GHz | Same Series | Free Hanging (In-Line) | 50 Ohms | Jack to Jack | Female Socket TNC Jack | Female to Female | Gold | Straight | |
 Radiall USA, Inc. | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | TNC to TNC | Female Socket TNC Jack | 18 GHz | Same Series | Free Hanging (In-Line) | 50 Ohms | Jack to Jack | Female Socket TNC Jack | Female to Female | Gold | Straight | 0.18 dB | |
 Radiall USA, Inc. | Nickel | Brass | Brass | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | TNC to TNC | TNC Plug Male Pin | 11 GHz | Same Series | Free Hanging (In-Line) | 50 Ohms | Plug to Plug | Male to Male | Gold | Straight | 0.18 dB | |
 Radiall USA, Inc. | Brass | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | TNC to TNC | TNC Plug Male Pin | 18 GHz | Same Series | Free Hanging (In-Line) | 50 Ohms | Plug to Plug | Male to Male | Gold | Straight | 0.18 dB | ||
 Radiall USA, Inc. | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | TNC to TNC | Female Socket TNC Jack | 18 GHz | Same Series | Free Hanging (In-Line) | 50 Ohms | Plug to Jack | Gold | Straight | 0.18 dB |
