1001-1551 Series

Catalog

SMC / STRAIGHT JACK MALE CLAMP T

Part	Mounting Type	Housing Color	Connector Style	Center Contact Material	Frequency - Max	Cable Group	Shield Termination	Number of Ports	Fastening Type	Impedance	Connector Type	Contact Termination	Mating Cycles	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Center Contact Plating	Insertion Loss	Body Finish	Dielectric Material

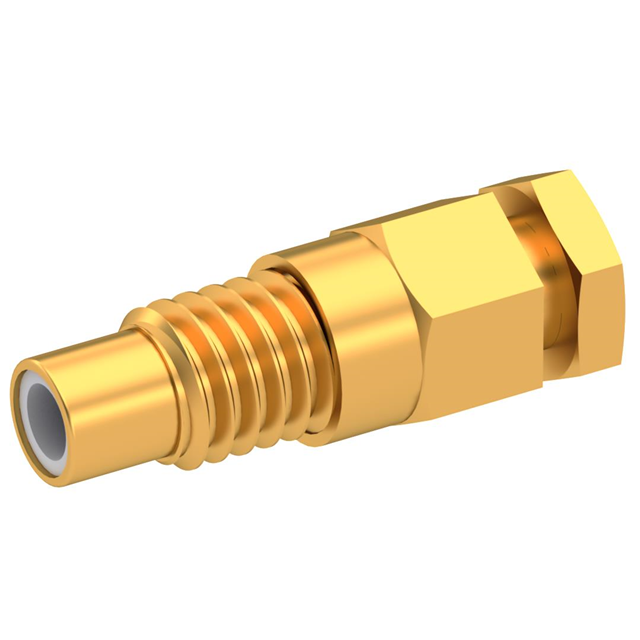

Radiall USA, Inc. 1001-1551-005	Free Hanging (In-Line)	Gold	SMC	Brass	10 GHz	RG-178DS	Clamp	1	Threaded	50 Ohm	Jack Male Pin	Solder	500 cycles	250 V	-65 °C	165 °C	Brass	Gold	0.25 dB	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 1001-1551-003	Free Hanging (In-Line)	Gold	SMC	Brass	10 GHz	179 316 RG-174	Clamp	1	Threaded	50 Ohm	Jack Male Pin	Solder	500 cycles	335 V	-65 °C	165 °C	Brass	Gold	0.25 dB	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. 1001-1551-002	Free Hanging (In-Line)	Gold	SMC	Brass	10 GHz	196 RG-178	Clamp	1	Threaded	50 Ohm	Jack Male Pin	Solder	500 cycles	250 V	-65 °C	165 °C	Brass	Gold	0.25 dB	Gold	Polytetrafluoroethylene (PTFE)
