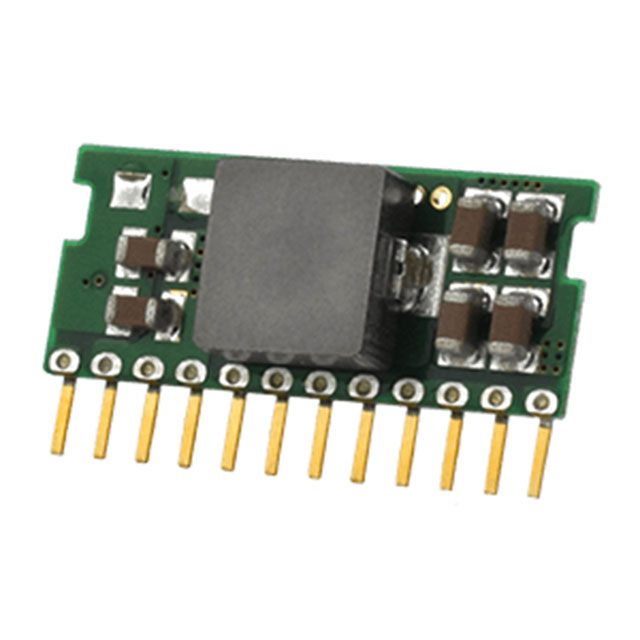

P783F Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 10W
| Part | Approval Agency | Efficiency | Number of Outputs | Current - Output (Max) [Max] | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Applications | Power (Watts) | Voltage - Output 1 | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | CE | 90 % | 1 | 3 A | Non-Isolated PoL Module | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 12-SIP Module | ITE (Commercial) | 10 W | 3.3 V | Through Hole | 8 V | 36 V | -40 °C | 85 °C |
CUI Inc. | CE | 97 % | 1 | 3 A | Non-Isolated PoL Module | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 12-SIP Module | ITE (Commercial) | 45 W | 15 V | Through Hole | 19 V | 36 V | -40 °C | 85 °C |
CUI Inc. | CE | 93 % | 1 | 3 A | Non-Isolated PoL Module | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 12-SIP Module | ITE (Commercial) | 15 W | 5 V | Through Hole | 8 V | 36 V | -40 °C | 85 °C |
 CUI Inc. | CE | 97 % | 1 | 3 A | Non-Isolated PoL Module | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 12-SIP Module | ITE (Commercial) | 36 W | 12 V | Through Hole | 16 V | 36 V | -40 °C | 85 °C |
