153D Series
Manufacturer: Dart Controls
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
ENCL DCPM MOTOR CONTROL - REV
| Part | Voltage - Supply (Option 1) | Voltage - Supply (Option 2) | Operating Temperature (Min) | Operating Temperature (Max) | Type | Current - Output | Motor Type | Mounting Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Control / Drive Type | Number of Motors | Voltage - Load (Min) | Voltage - Load (Other) | Voltage - Load (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

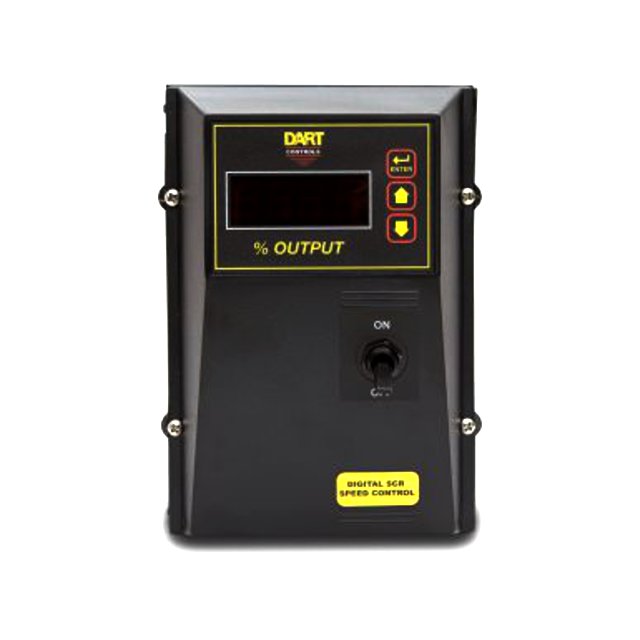

 Dart Controls | 120 VAC | 240 VAC/DC | -10 °C | 40 °C 45 °C | Module | 10 A | Brushed DC | Chassis Mount | 120 V | 240 VAC | Brushed | 1 | 0 V | 180 VDC | 90 V |

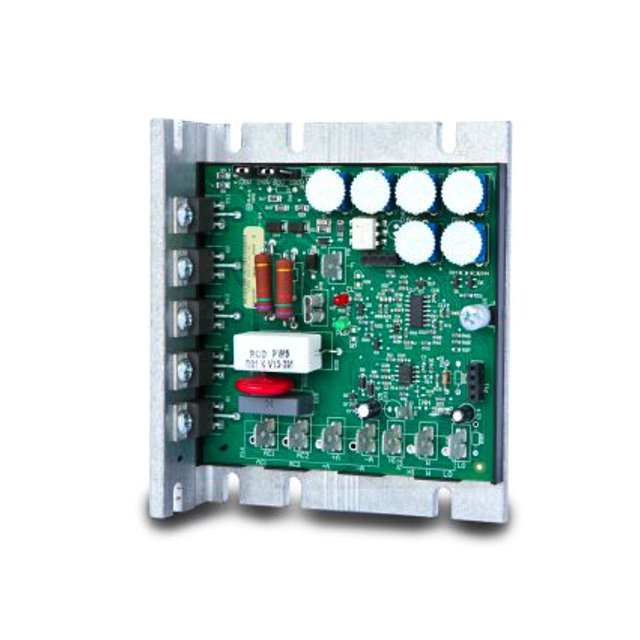

 Dart Controls | 120 VAC | 240 VAC/DC | -10 °C | 40 °C 45 °C | Board | 6 A | Brushed DC | Chassis Mount | 120 V | 240 VAC | Brushed | 1 | 0 V | 180 VDC | 90 V |
