QFR0612 Series

Catalog

FAN AXIAL 60X25.4MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	RPM	Power (Watts)	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Features	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Width [y]	Approval Agency	Weight	Weight	Bearing Type	Fan Type	Voltage - Rated	Noise	Ingress Protection
Delta Electronics QFR0612DH-BF00	7 V	13.2 VDC	Plastic	70000 Hrs	750 mA	Plastic	10600 RPM	9 W	1.43 mł/min	51.2 CFM	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	253.1 Pa	1.016 in H2O	70 °C	-10 °C	3 Wire Leads	25.4 mm	CE cURus VDE	0.199 lb	90.26 g	Ball	Tubeaxial	12 VDC	54.5 dB

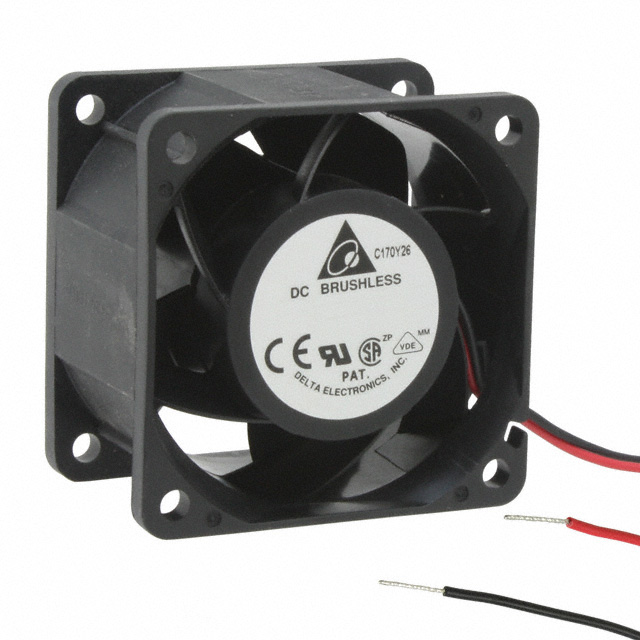

Delta Electronics QFR0612UHE-PM00	7 V	13.2 VDC	Plastic	40 °C 50000 Hrs	1.1 A	Plastic	13000 RPM	13.2 W	1.58 m³/min	56.4 CFM	60 mm	60 mm		546.5 Pa	2.194 in H2O	70 °C	-10 °C	2 Wire Leads	38 mm	CE CSA UL VDE	0.287 lb	130.18 g	Ball	Tubeaxial	12 VDC	61.5 dB(A)	IP55 - Dust Protected Water Resistant

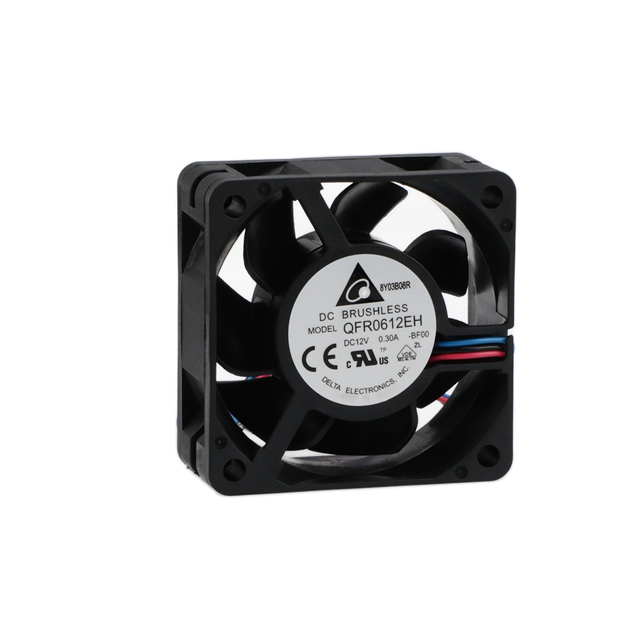

Delta Electronics QFR0612EH-BF00	7 V	13.2 VDC	Plastic	70000 Hrs	0.2 A	Plastic	6000 RPM	2.4 W	0.809 m³/min	28.9 CFM	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	88 Pa	0.353 in H2O	70 °C	-10 °C	3 Wire Leads	25.4 mm	CE cURus VDE	0.199 lb	90.26 g	Ball	Tubeaxial	12 VDC	39 dB(A)

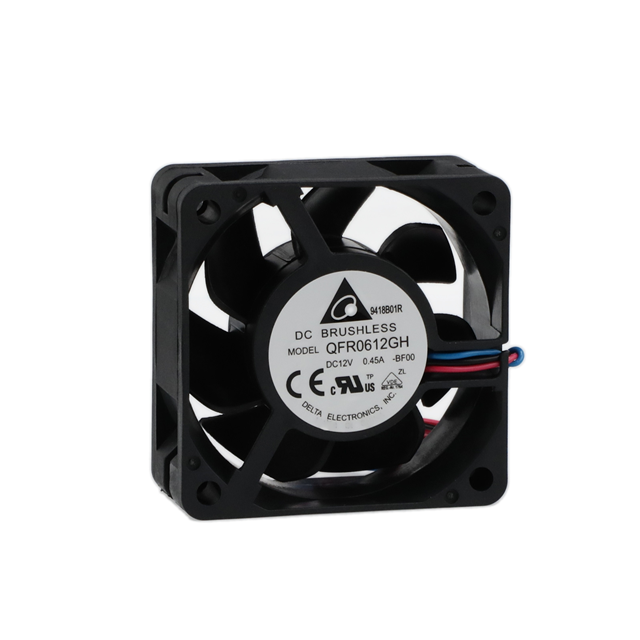

Delta Electronics QFR0612GH-BF00	7 V	13.2 VDC	Plastic	70000 Hrs	0.3 A	Plastic	7600 RPM	3.6 W	1.03 m³/min	36.6 CFM	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)	139 Pa	0.558 in H2O	70 °C	-10 °C	3 Wire Leads	25.4 mm	CE cURus VDE	0.199 lb	90.26 g	Ball	Tubeaxial	12 VDC	44.7 dB(A)
