1776303 Series

Catalog

CONN TERM STRIP 9CIRC 0.472"

Part	Bottom Termination	Operating Temperature	Barrier Type	Material Flammability Rating	Terminal Screw Finish	Color	Mounting Type	Material - Insulation	Current Rating (Amps)	Terminal Block Type	Pitch [x]	Pitch [x]	Top Termination	Number of Wire Entries	Terminal Screw Material	Number of Rows	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits

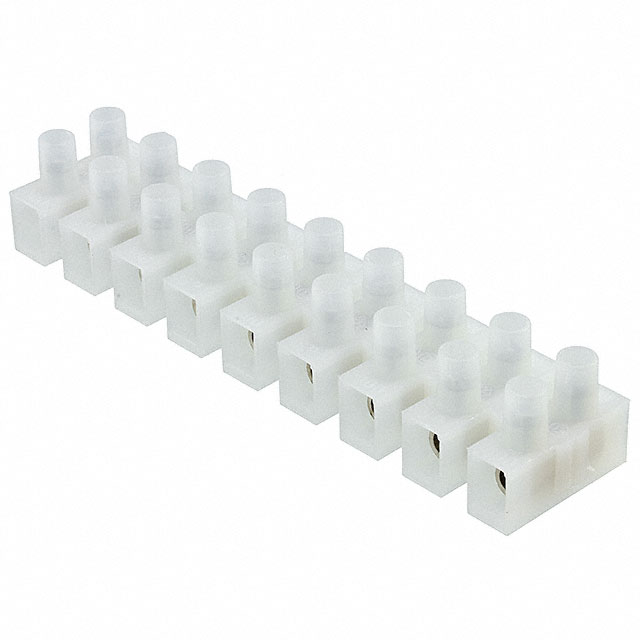

TE Connectivity Raychem Cable Protection 1776303-9	Closed	212 °F	Enclosed	UL94 V-2	Non-Hexavalent Chromate Zinc	Natural	Chassis Panel	Polyamide (PA66) Nylon 6/6	50 A	Eurostyle Terminal Strip	12 mm	0.472 in	Screws	18	Steel	2	250 VDC	8 AWG	22 AWG
TE Connectivity Raychem Cable Protection 1776303-7	Closed	212 °F	Enclosed	UL94 V-2	Non-Hexavalent Chromate Zinc	Natural	Chassis Panel	Polyamide (PA66) Nylon 6/6	50 A	Eurostyle Terminal Strip	12 mm	0.472 in	Screws	14	Steel	2	250 VDC	8 AWG	22 AWG	7

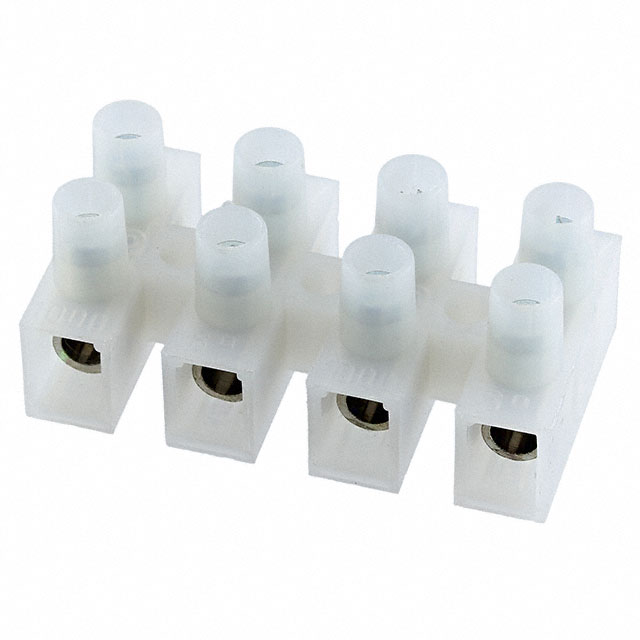

TE Connectivity Raychem Cable Protection 1776303-4	Closed	212 °F	Enclosed	UL94 V-2	Non-Hexavalent Chromate Zinc	Natural	Chassis Panel	Polyamide (PA66) Nylon 6/6	50 A	Eurostyle Terminal Strip	12 mm	0.472 in	Screws	8	Steel	2	250 VDC	8 AWG	22 AWG	4

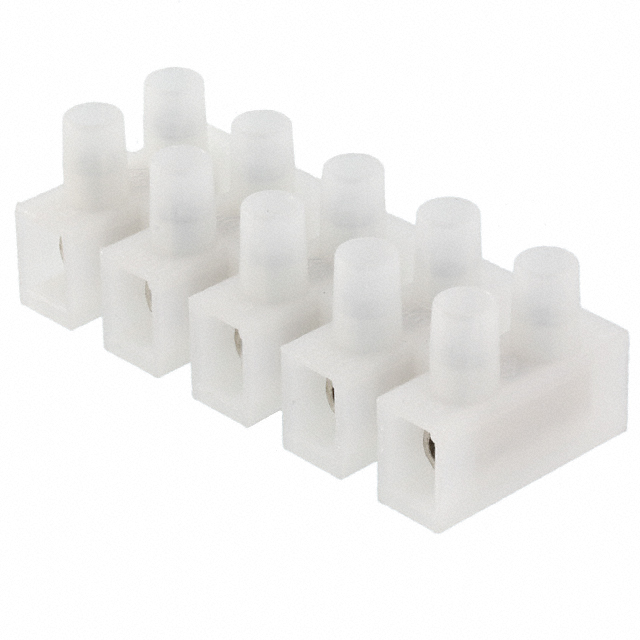

TE Connectivity Raychem Cable Protection 1776303-5	Closed	212 °F	Enclosed	UL94 V-2	Non-Hexavalent Chromate Zinc	Natural	Chassis Panel	Polyamide (PA66) Nylon 6/6	50 A	Eurostyle Terminal Strip	12 mm	0.472 in	Screws	10	Steel	2	250 VDC	8 AWG	22 AWG	5
