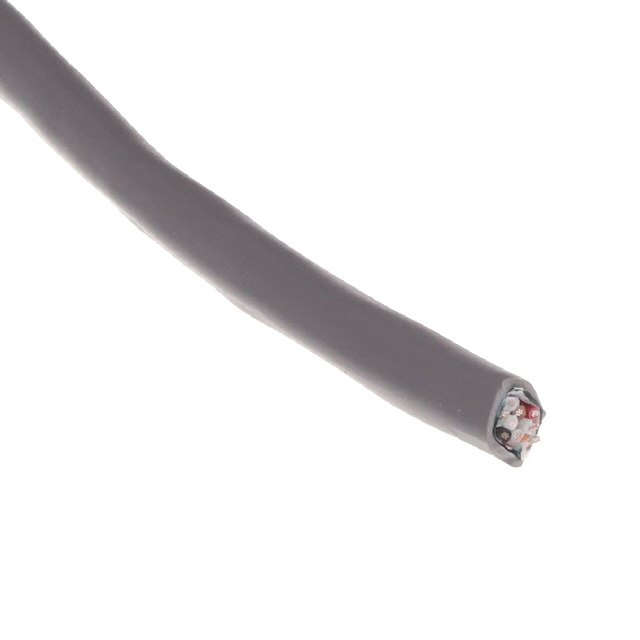

5692 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 8COND 26AWG
| Part | Shield Coverage | Shield Material | Length | Length | Jacket Color | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [x] | Conductor Strand [x] | Voltage | Conductor Insulation | Cable Type | Features | Usage | Jacket (Insulation) Material | Ratings | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | Slate | Foil | -35 °C | 105 ░C | 8 | 5.77 mm | 0.227 in | Copper Tinned | 0.813 mm | 0.032 in | 34 AWG | 7 | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Pair | Biological Compatibility Drain Wire Rip Cord | Communication Control | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | 26 AWG |
ALPHA WIRE | 100 % | Aluminum | 152.4 m | 500 ft | Slate | Foil | -35 °C | 105 ░C | 8 | 5.77 mm | 0.227 in | Copper Tinned | 0.813 mm | 0.032 in | 34 AWG | 7 | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Pair | Biological Compatibility Drain Wire Rip Cord | Communication Control | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | 26 AWG |
