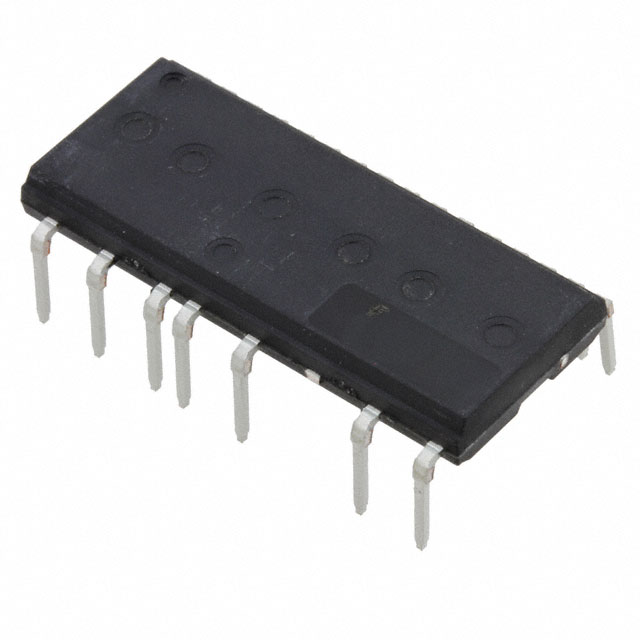

FSB50250UTD Series

Intelligent Power Module, 500V, 2A

Catalog

Intelligent Power Module, 500V, 2A

Part	Current	Voltage - Isolation	Voltage	Type	Package / Case [y]	Package / Case	Package / Case [x]	Configuration	Mounting Type	Package / Case	Package / Case	Package / Case
ON Semiconductor FSB50250UD	1.1 A	1500 VAC	500 V	MOSFET	14 mm	23-PowerDIP Module	0.551 in	3 Phase	Through Hole
ON Semiconductor FSB50250UD	1.1 A	1500 VAC	500 V	MOSFET	14 mm	23-PowerDIP Module	0.551 in	3 Phase	Through Hole
ON Semiconductor FSB50250A	1.2 A	1500 VAC	500 V	IGBT		23-PowerDIP Module		3 Phase	Through Hole	0.573 in	14.56 mm
ON Semiconductor FSB50250S	1 A	1500 VAC	500 V	MOSFET		23-PowerSMD Module Gull Wing		3 Phase	Surface Mount
ON Semiconductor FSB50250US	1.1 A	1500 VAC	500 V	MOSFET		23-PowerSMD Module		3 Phase Inverter	Surface Mount
ON Semiconductor FSB50250UTD	1.1 A	1500 VAC	500 V	MOSFET	19 mm	23-PowerDIP Module	0.748 in	3 Phase	Through Hole
ON Semiconductor FSB50250A	1.2 A	1500 VAC	500 V	IGBT		23-PowerDIP Module		3 Phase	Through Hole	0.573 in	14.56 mm
ON Semiconductor FSB50260SF	1.7 A	1500 VAC	600 V	MOSFET	14 mm	23-PowerDIP Module	0.551 in	3 Phase	Through Hole
ON Semiconductor FSB50250	1 A	1500 VAC	500 V	MOSFET	14 mm	23-PowerDIP Module	0.551 in	3 Phase	Through Hole
ON Semiconductor FSB50250AB	1.2 A	1500 VAC	500 V	MOSFET		23-PowerDIP Module		3 Phase	Through Hole		0.644 in	16.35 mm

Catalog

Intelligent Power Module, 500V, 2A

Key Features

• UL Certified No. E209204 (UL1557)

• Optimized for over 10 kHz Switching Frequency

• 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection

• Built-In Bootstrap Diodes Simplify PCB Layout

• Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing

• Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input

• Optimized for Low Electromagnetic Interference

• HVIC Temperature-Sensing Built-In for Temperature Monitoring

• HVIC for Gate Driving and Under-Voltage Protection

• Isolation Rating: 1500 Vrms / min.

Description

FSB50250AB is a tiny smart power module (SPM®) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving. FSB50250AB provides low electromagnetic interference (EMI) characteristics with optimized switching speed. Moreover, since it employs FRFET as a power switch, it has much better ruggedness and larger safe operation area (SOA) than that of an IGBT-based power module or one-chip solution.The package is optimized for the thermal performance and compactness for the use in the built-in motor application and any other application where the assembly space is concerned.FSB50250AB is the best solution for the compact inverter providing the energy efficiency, compactness, and low electromagnetic interference.
