SCBS Series

Catalog

PCB MOUNTING, NYLON, 7.9MM X 12.7MM

Part	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Features	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Material	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Mounting Hole Diameter	Mounting Panel Thickness	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter
Essentra Components SCBS-8-01	1/4	0.25 in	6.35 mm	8-32 Thread	29.3 mm	1.154 in	1.57 mm	0.062 in	0.0625 in	Nylon	12.7 mm	0.5 in	0.5 in	Threaded Stud	3.99 mm	0.157 "	Snap Lock
Essentra Components SCBS-22.5-01	1/4	0.25 in	6.35 mm	8-32 Thread	52.3 mm	2.059 in	1.57 mm	0.062 in	0.0625 in	Nylon	35.71 mm		1.406 in	Threaded Stud	3.99 mm	0.157 "	Snap Lock
Essentra Components SCBS-12-01	1/4	0.25 in	6.35 mm	8-32 Thread	35.7 mm	1.406 in	1.57 mm	0.062 in	0.0625 in	Nylon	19.05 mm	0.75 "	0.75 "	Threaded Stud	3.99 mm	0.157 "	Snap Lock
Essentra Components SCBS-12-19		0.25 in	6.4 mm				1.57 mm	0.062 in	0.0625 in	Nylon Flame Retardant	19.05 mm	0.75 "	0.75 "				Arrowhead Snap Lock	8-32 Thread	0.25 in	3.96 mm	5 32"	0.156 in
Essentra Components SCBS-16-19		0.25 in	6.4 mm				1.57 mm	0.062 in	0.0625 in	Nylon Flame Retardant	25.4 mm		1 in				Arrowhead Snap Lock	8-32 Thread	0.25 in	3.96 mm	5 32"	0.156 in
Essentra Components SCBS-14-01	1/4	0.25 in	6.35 mm	8-32 Thread	38.8 mm	1.528 in	1.57 mm	0.062 in	0.0625 in	Nylon	22.23 mm	0.875 in	0.875 in	Threaded Stud	3.99 mm	0.157 "	Snap Lock

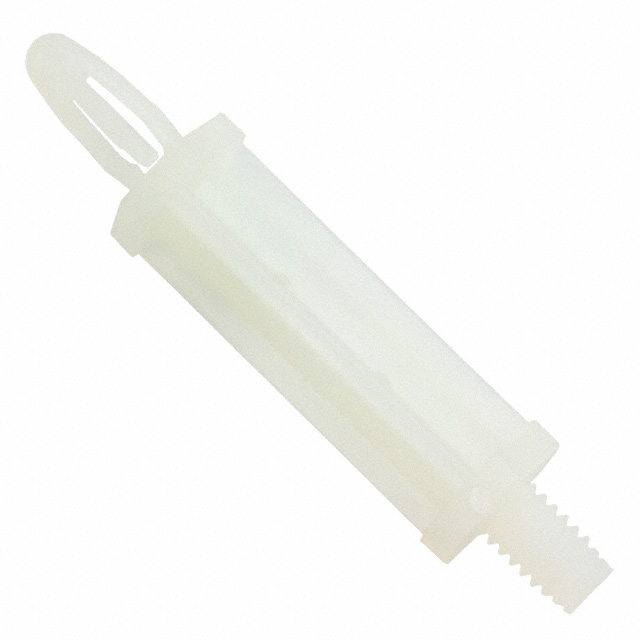

Essentra Components SCBS-16-01	1/4	0.25 in	6.35 mm	8-32 Thread	42 mm	1.654 in	1.57 mm	0.062 in	0.0625 in	Nylon	25.4 mm		1 in	Threaded Stud	3.99 mm	0.157 "	Snap Lock
