700SP7 Series

Manufacturer: E-Switch

Catalog

PUSHBUTTON SWITCHES .4A @ 20VAC ON-(ON) SPDT DPDT

Part	Electrical Life	Mechanical Life	Mounting Type	Current Rating (Amps)	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Switch Function	Circuit	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [diameter]
E-Switch 700SP7B21VS3RE	50000 Cycles	50000 Cycles	Through Hole	0.4 VA	Plunger Round	85 °C	-30 ░C	Standard	PC Pin	On-Mom	SPDT	No Marking	White	20 V	20 V

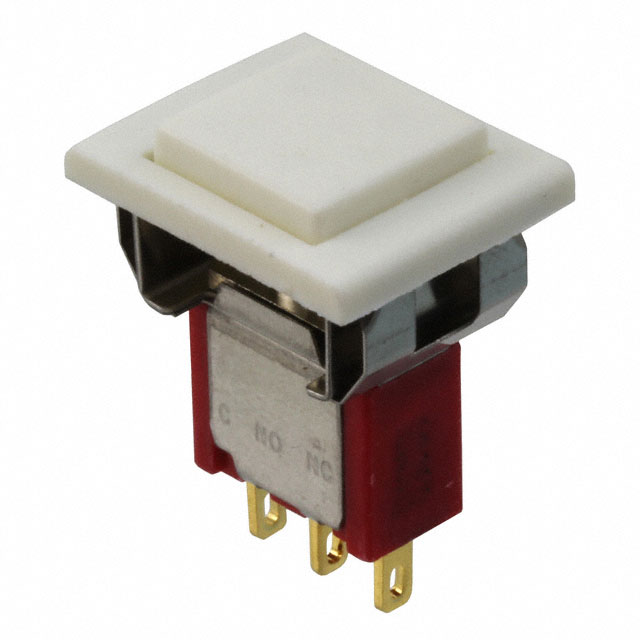

E-Switch 700SP7M1REAP2WHTWHT	50000 Cycles	50000 Cycles	Panel Mount Snap-In	0.4 VA	Button Square	85 °C	-30 ░C	Standard	Solder Lug	On-Mom	SPDT	No Marking	White	20 V	20 V	12.7 mm	15.7 mm
E-Switch 700SP7B10M1QEHC1BLK	50000 Cycles	50000 Cycles	Panel Mount Rear	3 A	Button Round	85 °C	-30 ░C	Standard	Solder Lug	On-Mom	SPDT	No Marking	Black	28 V	120 V			0.25 in
E-Switch 700SP7B10M51QEH	50000 Cycles	50000 Cycles	Panel Mount Rear	3 A	Plunger Round	85 °C	-30 ░C	Standard	Wire Wrap	On-Mom	SPDT	No Marking	White	28 V	120 V			0.25 in
E-Switch 700SP7B20M1QE	50000 Cycles	50000 Cycles	Panel Mount Rear	3 A	Plunger Round	85 °C	-30 ░C	Standard	Solder Lug	On-Mom	SPDT	No Marking	White	28 V	120 V			0.25 in

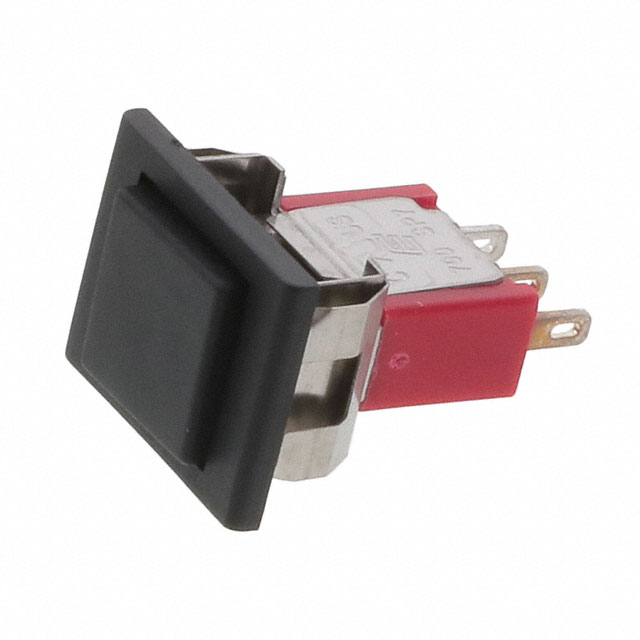

E-Switch 700SP7M1QEAP2BLKBLK	50000 Cycles	50000 Cycles	Panel Mount Snap-In	3 A	Button Square	85 °C	-30 ░C	Standard	Solder Lug	On-Mom	SPDT	No Marking	Black	28 V	120 V	12.7 mm	15.7 mm
E-Switch 700SP7B10M6REH	50000 Cycles	50000 Cycles	Panel Mount Rear Right Angle	0.4 VA	Plunger Round	85 °C	-30 ░C	Standard	PC Pin	On-Mom	SPDT	No Marking	White	20 V	20 V			0.25 in

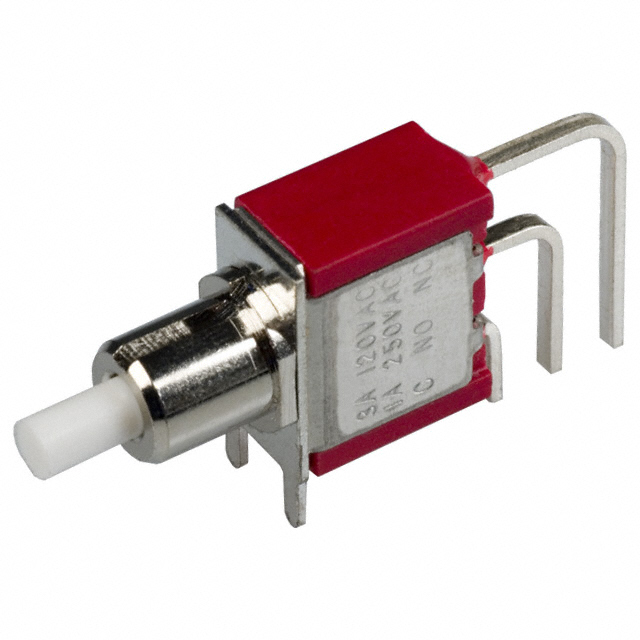

E-Switch 700SP7B20M7QE	50000 Cycles	50000 Cycles	Right Angle Through Hole Vertical	3 A	Plunger Round	85 °C	-30 ░C	Standard	PC Pin	On-Mom	SPDT	No Marking	White	28 V	120 V

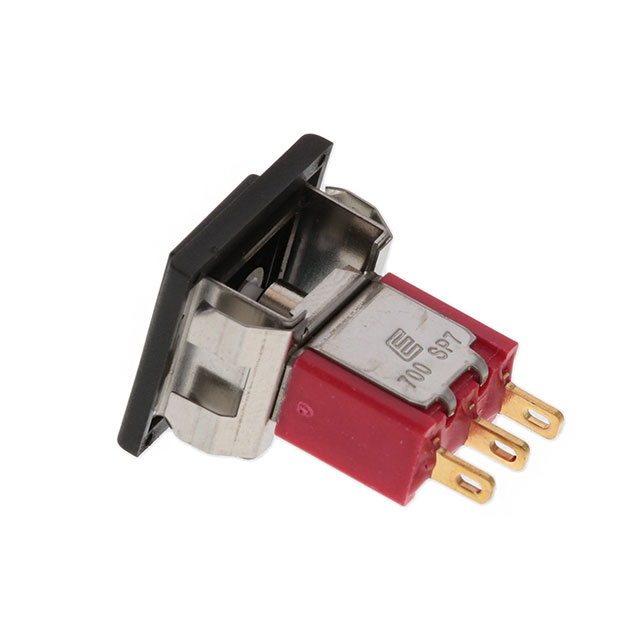

E-Switch 700SP7M1REAP2BLKBLK	50000 Cycles	50000 Cycles	Panel Mount Snap-In	0.4 VA	Button Square	85 °C	-30 ░C	Standard	Solder Lug	On-Mom	SPDT	No Marking	Black	20 V	20 V	12.7 mm	15.7 mm
E-Switch 700SP7B21VS2QEC2BLK	50000 Cycles	50000 Cycles	Through Hole	3 A	Button Round	85 °C	-30 ░C	Standard	PC Pin	On-Mom	SPDT	No Marking	Black	28 V	120 V
