PW Series

Catalog

ENCLOSURES, BOXES, & CASES PW SERIES UL94-5VA ABS ENCLOSURE (4.5 X 3.4 X 1.9 IN)

Part	Material	Height [z]	Height [z]	Material Flammability Rating	Design	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Area (L x W)	Area (L x W)	Size / Dimension [z]	Size / Dimension [z]	Type	For Use With/Related Products	Area (L x W) [custom]	Area (L x W) [custom]	Height	Height

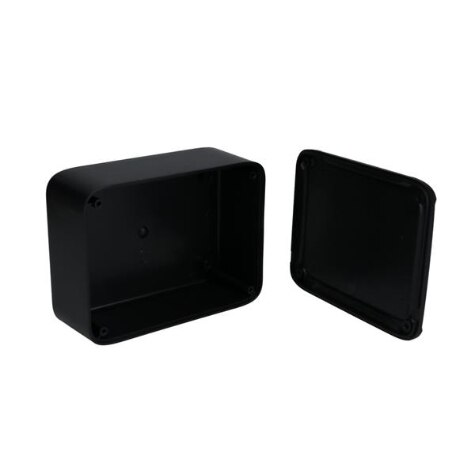

BUD INDUSTRIES PW-12846-T	ABS Plastic	48.01 mm	1.89 in	UL94 5A	Cover Included	Black	114.3 mm	3.38 "	4.5 in	85.85 mm	Enclosure	98 cm²	15.2 in²
BUD INDUSTRIES PWX-12847	Aluminum Metal						127.51 mm	3.52 in	5.02 in	89.41 mm				0.06 "	1.52 mm	Panel Inner	PW Series

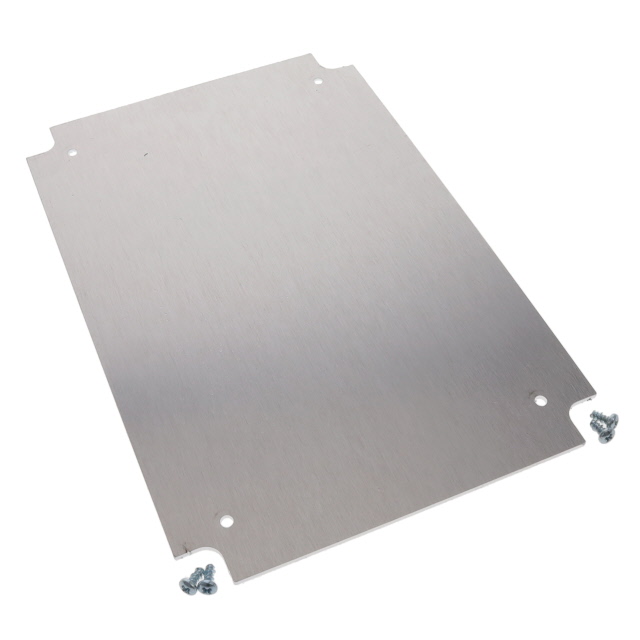

BUD INDUSTRIES PWX-12850	Aluminum Metal						178.31 mm	4.77 "	7.02 "	121.16 mm				0.06 "	1.52 mm	Panel Inner	PW Series
BUD INDUSTRIES PW-12849-TMB	ABS Plastic	50.04 mm	1.97 in	UL94 5A	Cover Included	Black	152.4 mm	4.38 "	6 "	111.25 mm	Enclosure	170 cm˛	26.3 in²
BUD INDUSTRIES PWX-12846	Aluminum Metal						108.46 mm	3.15 in	4.27 in	80.01 mm				0.06 "	1.52 mm	Panel Inner	PW Series
BUD INDUSTRIES PW-12850-MB	ABS Plastic			UL94 5A	Cover Included	Black	184.15 mm	5 in	7.25 "	5 in	Enclosure							36.2 in²	234 cm²	2.22 in	56.39 mm
BUD INDUSTRIES PW-12846-TMB	ABS Plastic	46.99 mm	1.85 "	UL94 5A	Cover Included	Black	114.3 mm	3.38 "	4.5 in	85.85 mm	Enclosure	98 cm²	15.2 in²

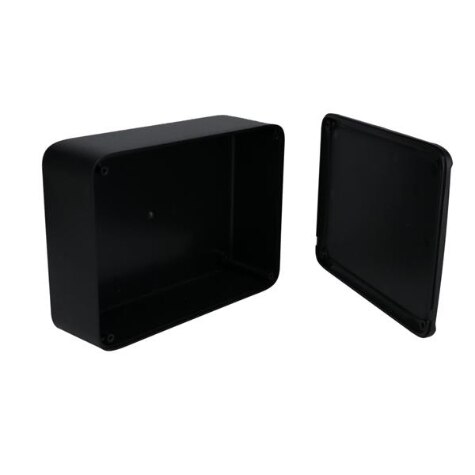

BUD INDUSTRIES PW-12849	ABS Plastic	50.04 mm	1.97 in	UL94 5A	Cover Included	Black	152.4 mm	4.38 "	6 "	111.25 mm	Enclosure	170 cm˛	26.3 in²
BUD INDUSTRIES PW-12847-T	ABS Plastic	50.04 mm	1.97 in	UL94 5A	Cover Included	Black	133.35 mm	3.75 "	5.25 in	95.25 mm	Enclosure	127 cm²	19.7 in²
BUD INDUSTRIES PWX-12848	Aluminum Metal						95.76 mm	3.77 in	3.77 "	95.76 mm				0.06 "	1.52 mm	Panel Inner	PW Series
