725-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

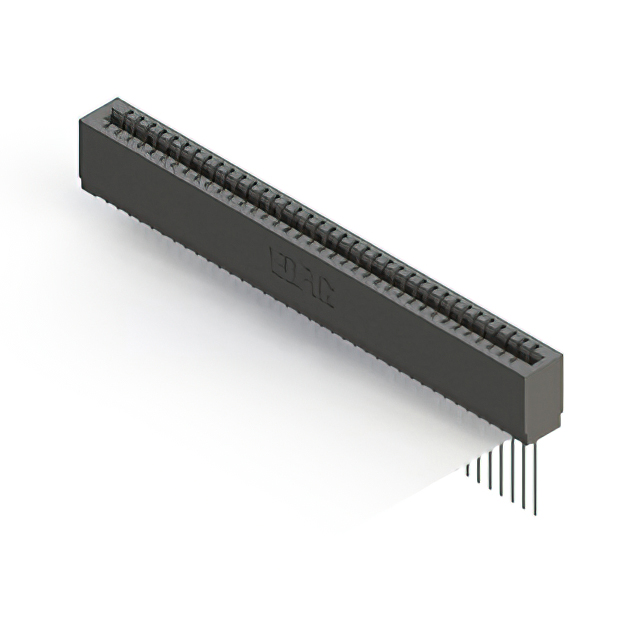

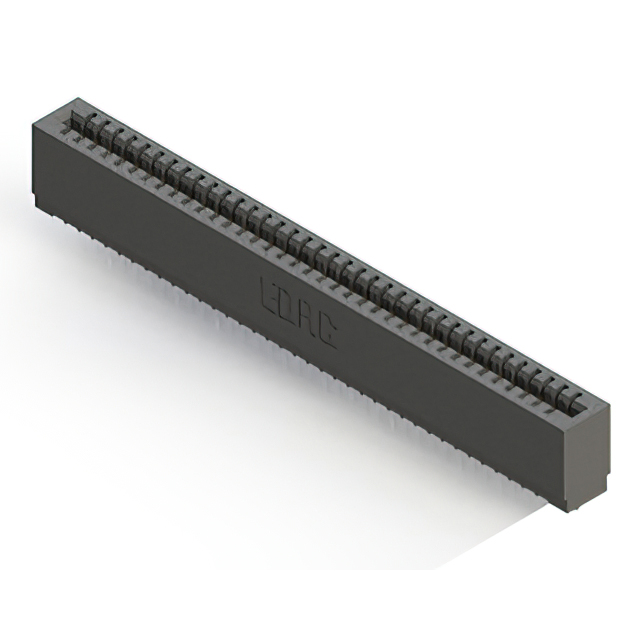

CONN EDGE SINGLE FML 37POS 0.100
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Number of Positions | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Type | Read Out | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Finish | Gender | Number of Positions/Bay/Row | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | 37 | Press-Fit | -40 C | 105 ░C | 1 | Non Specified - Single Edge | Single | Black | Through Hole | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 37 | Copper Alloy |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | 37 | Press-Fit Wire Wrap | -40 C | 105 ░C | 1 | Non Specified - Single Edge | Single | Black | Through Hole | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 37 | Copper Alloy |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | 37 | Press-Fit | -40 C | 105 ░C | 1 | Non Specified - Single Edge | Single | Black | Through Hole | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 37 | Copper Alloy |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | 37 | Press-Fit Wire Wrap | -40 C | 105 ░C | 1 | Non Specified - Single Edge | Single | Black | Through Hole | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Female | 37 | Copper Alloy |
