53K401 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN ADAPT JACK-JACK N 50 OHM
| Part | Body Material | Center Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mounting Type | Convert From (Adapter End) | Mounting Feature | Style | Conversion Type | Adapter Series | Frequency - Max [Max] | Convert To (Adapter End) | Center Gender | Adapter Type | Center Contact Plating | Impedance | Mating Cycles | Voltage Rating | Shield Termination | Fastening Type | Number of Ports | Housing Color | Connector Type | Contact Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

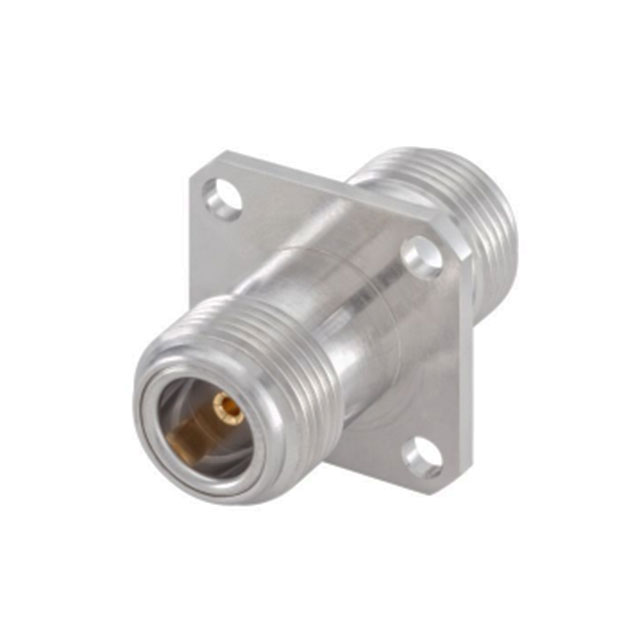

 Rosenberger | Brass | Bronze | Polytetrafluoroethylene (PTFE) | 85 °C | -45 °C | White Bronze | Panel Mount | Female Socket N Jack | Flange | Straight | Same Series | N to N | 11 GHz | N Jack Female Socket | Female to Female | Jack to Jack | Gold | 50 Ohms | |||||||||

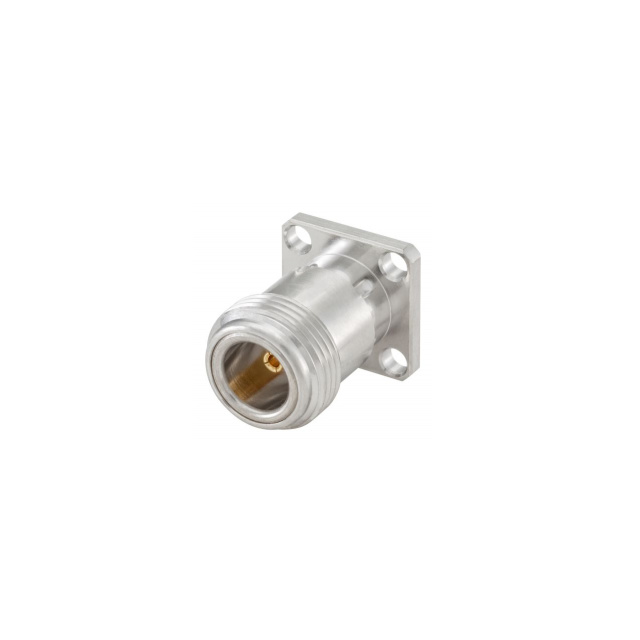

 Rosenberger | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | White Bronze | Panel Mount | Flange | 11 GHz | Gold | 50 Ohms | 500 | 500 V | Solder | Threaded | 1 | Silver | Female Socket Jack | Solder Cup | N Type | |||||||

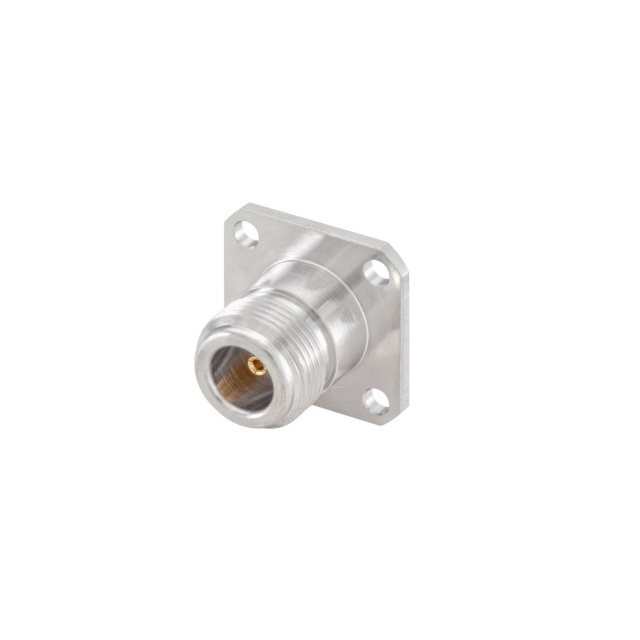

 Rosenberger | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 85 °C | -45 °C | White Bronze | Panel Mount | Flange | 11 GHz | Gold | 50 Ohms | 500 | 500 V | Solder | Threaded | 1 | Silver | Female Socket Jack | Solder Cup | N Type |
