XC6229 Series

Catalog

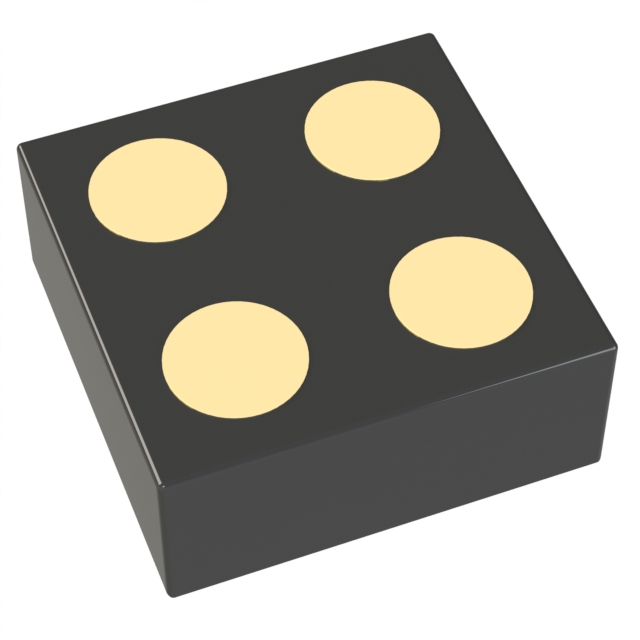

IC REG LIN 3.3V 300MA LGA-4B01

...

Part	Voltage - Output (Min/Fixed)	Current - Output	Number of Regulators	Package / Case	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	PSRR	Output Configuration	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Protection Features	Supplier Device Package	Control Features	Voltage - Output (Min/Fixed) [Min]	Voltage Dropout (Max)
Torex Semiconductor Ltd XC6229D3311R-G	3.3 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.26 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229D12B1R-G	1.25 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.625 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229D33B1R-G	3.35 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.26 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229D20B1R-G		300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.34 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable	2.05 V
Torex Semiconductor Ltd XC6229H13B1R-G	1.35 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive		85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable		0.575 V
Torex Semiconductor Ltd XC6229D1711R-G	1.7 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.44 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229D1211R-G	1.2 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.625 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229H32B1R-G	3.25 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.26 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229H12B1R-G	1.25 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.625 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
Torex Semiconductor Ltd XC6229D38B1R-G	3.85 V	300 mA	1	4-XFLGA	220 µA	5.5 V	80 dB	Positive	0.26 V	85 C	-40 ¯C	Surface Mount	Over Current Over Temperature	LGA-4B01	Enable
