892-024 Series
Manufacturer: EDAC Inc.
Beta
⌘K

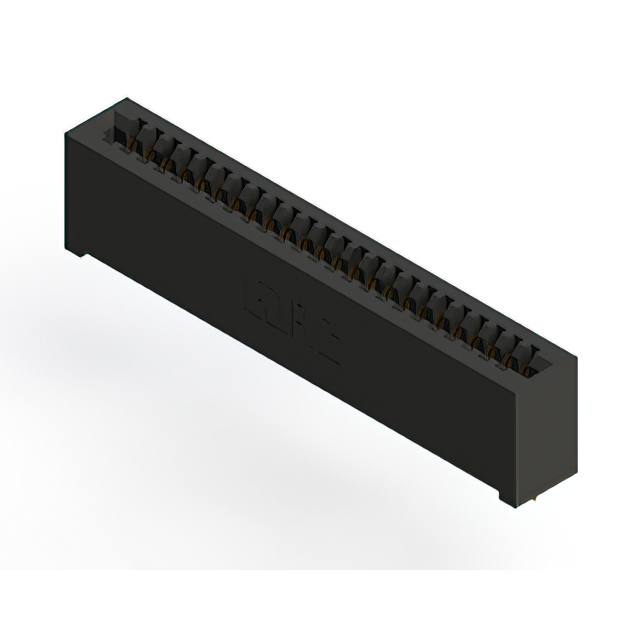

CONN EDGE DUAL FMALE 24POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Mounting Type | Contact Material | Number of Positions/Bay/Row | Card Type | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Rows [custom] | Read Out | Number of Positions | Termination | Color | Pitch | Pitch | Termination Rows | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 12 | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Female | 125 °C | -40 C | Gold | 2 | Dual | 24 | Solder | Black | 0.1 " | 2.54 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 24 | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Female | 125 °C | -40 C | Gold | Single | 24 | Solder | Black | 0.1 " | 2.54 mm | 1 | 1 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 24 | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | Female | 125 °C | -40 C | Gold | Single | 24 | Solder | Black | 0.1 " | 2.54 mm | 1 | 1 | 0.116 " | 2.95 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 24 | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | Female | 125 °C | -40 C | Gold | Single | 24 | Solder | Black | 0.1 " | 2.54 mm | 1 | 1 | 0.116 " | 2.95 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 24 | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | Female | 125 °C | -40 C | Gold | Single | 24 | Solder | Black | 0.1 " | 2.54 mm | 1 | 1 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 12 | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | Female | 125 °C | -40 C | Gold | 2 | Dual | 24 | Wire Wrap | Black | 0.1 " | 2.54 mm | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 24 | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | Female | 125 °C | -40 C | Gold | Single | 24 | Wire Wrap | Black | 0.1 " | 2.54 mm | 1 | 1 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Right Angle Through Hole | Copper Alloy | 12 | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Female | 125 °C | -40 C | Gold | 2 | Dual | 24 | Solder | Black | 0.1 " | 2.54 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 24 | Non Specified - Single Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | Female | 125 °C | -40 C | Gold | Single | 24 | Solder | Black | 0.1 " | 2.54 mm | 1 | 1 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Through Hole | Copper Alloy | 12 | Non Specified - Dual Edge | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | Female | 125 °C | -40 C | Gold | 2 | Dual | 24 | Wire Wrap | Black | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm |
