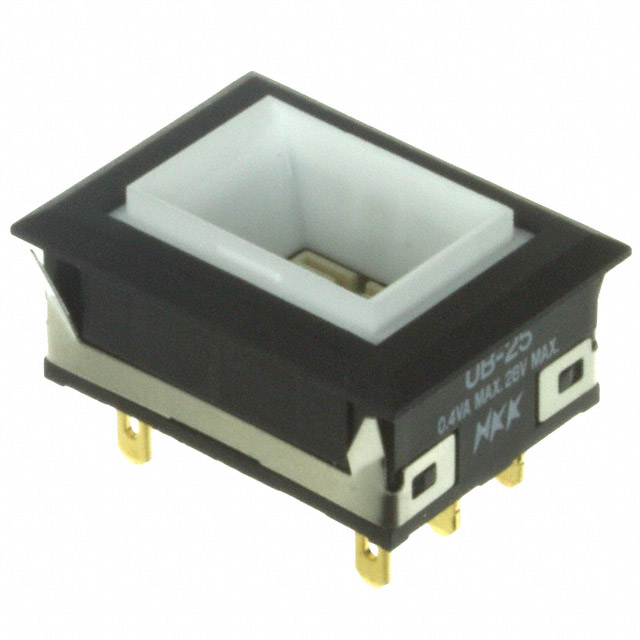

UB25NKG Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH DPDT 0.4VA 28V
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Actuator Type | Type | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Circuit | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Mounting Type | Features | Switch Function | Illumination Voltage (Nominal) | Color - Actuator/Cap | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 200000 Cycles | 1000000 Cycles | 0.4 VA | Plunger for Cap | Standard | 28 V | -20 ░C | 70 °C | No Marking | DPDT | Solder Lug | 16.2 mm | 22.4 mm | 28 V | Panel Mount Snap-In | Spot LED | On-Mom | |||
 NKK Switches | 200000 Cycles | 1000000 Cycles | 0.4 VA | Button Rectangular | Illuminated Standard | 28 V | -25 °C | 50 °C | No Marking | DPDT | Solder Lug | 16.2 mm | 22.4 mm | 28 V | Panel Mount Snap-In | Spot LED | On-Mom | 2 VDC | Clear | Amber LED |
