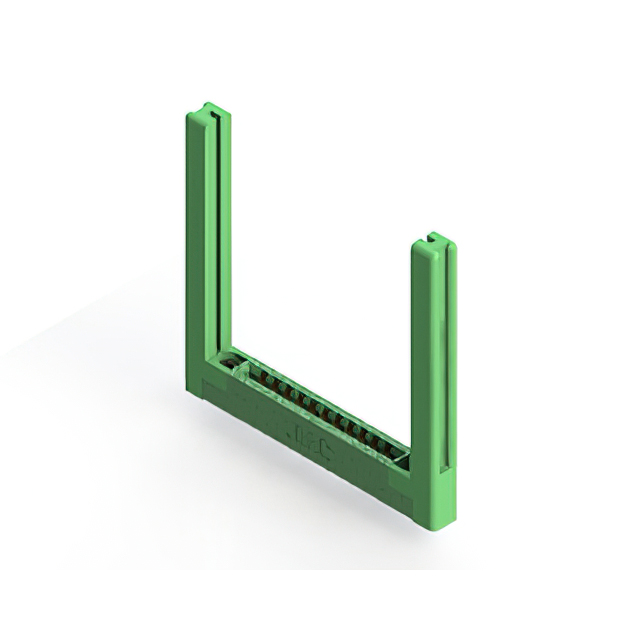

306-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

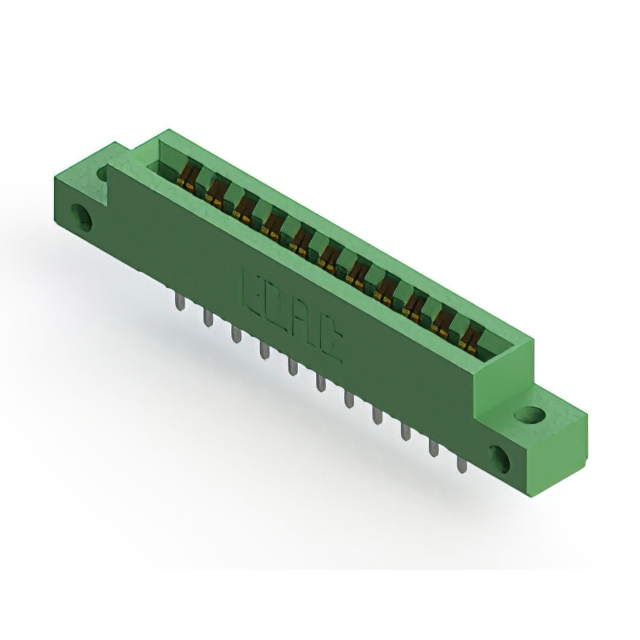

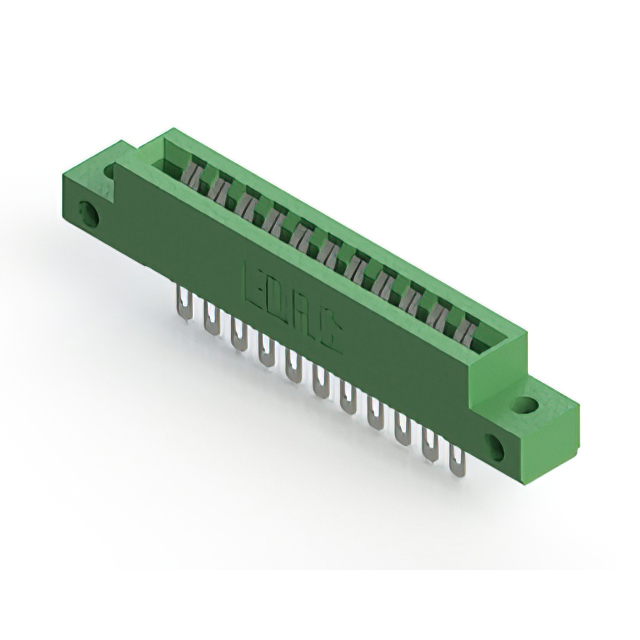

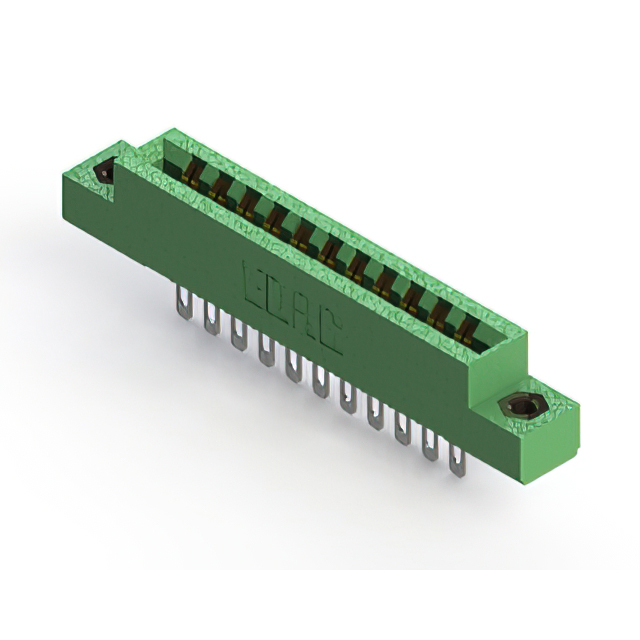

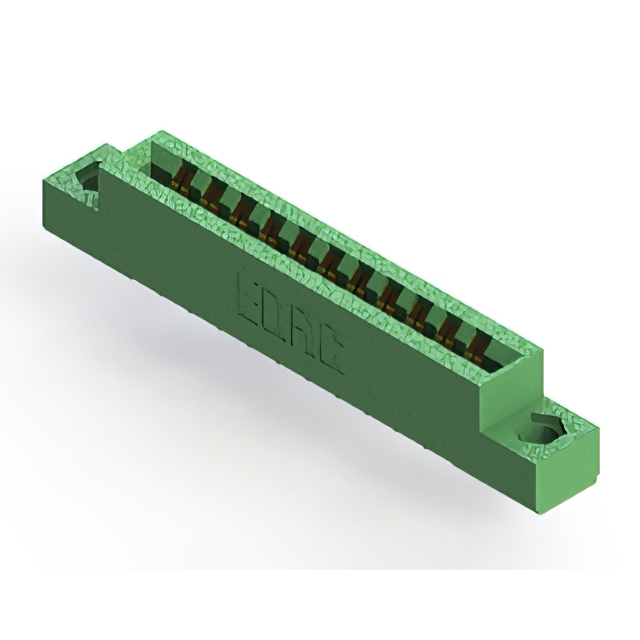

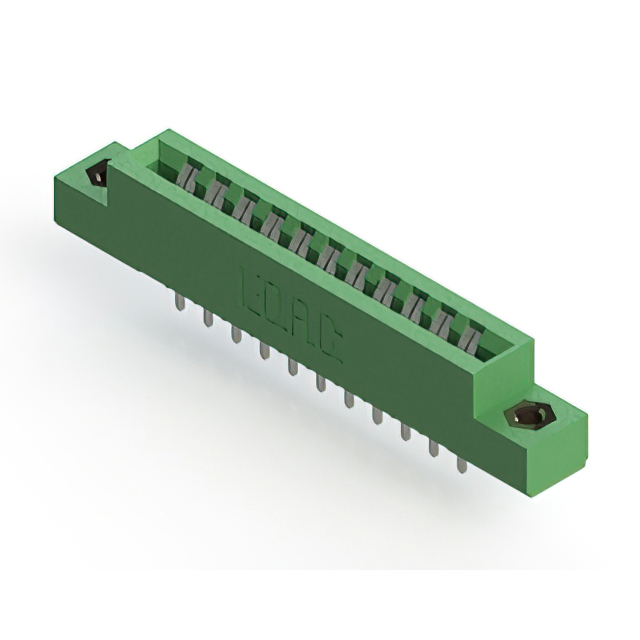

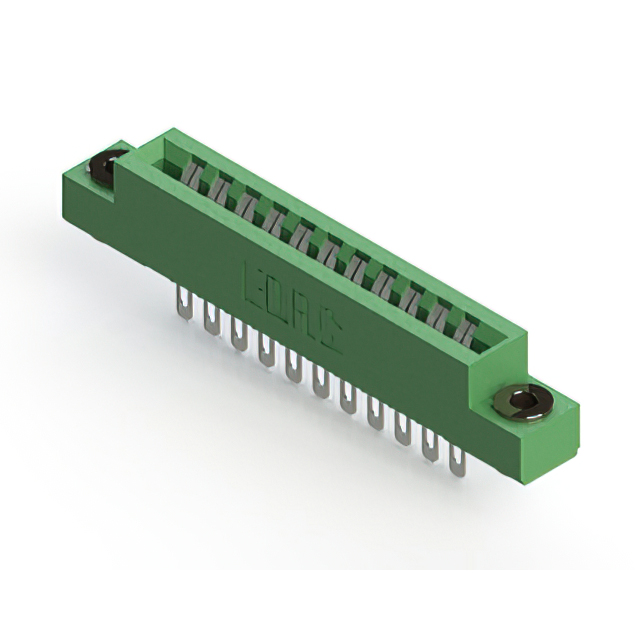

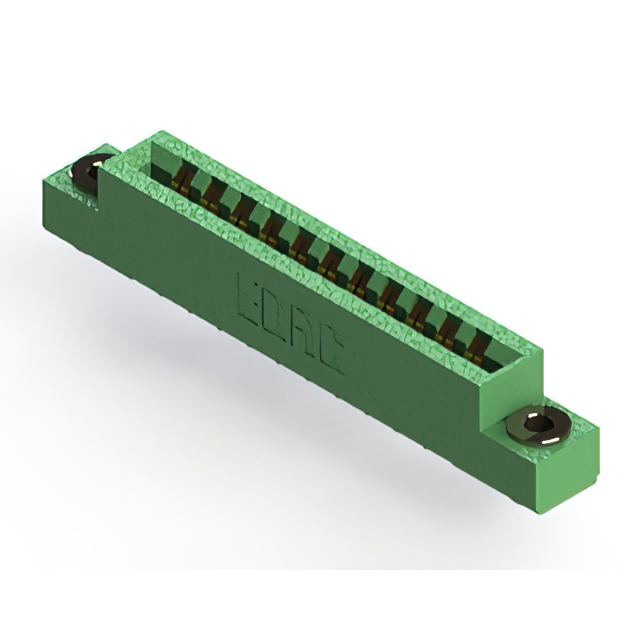

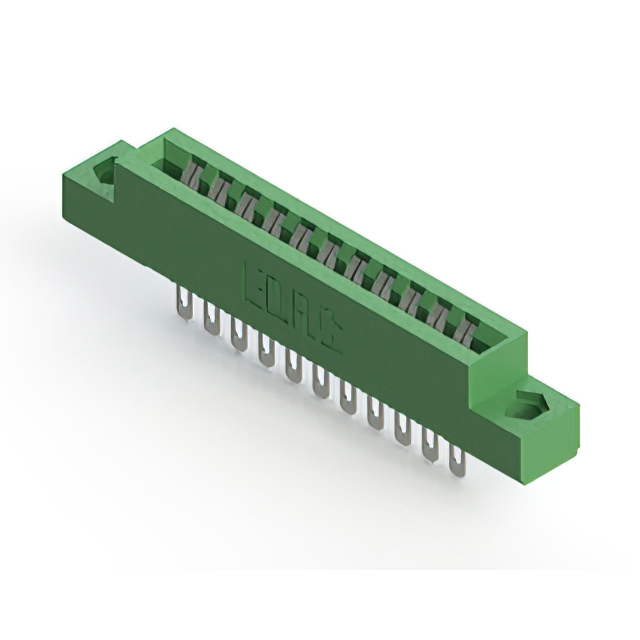

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Contact Material | Contact Type | Card Type | Contact Finish | Gender | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Read Out | Color | Termination | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Gold | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 0.25 Ám | 10 Áin | Dual | Green | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Tin | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | Dual | Green | Solder Eyelet(s) | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Gold | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 0.25 Ám | 10 Áin | Dual | Green | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 2 | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Gold | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 0.25 Ám | 10 Áin | Dual | Green | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount Through Hole | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 2 | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Gold | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 0.25 Ám | 10 Áin | Dual | Green | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Tin | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | Dual | Green | Solder Eyelet(s) | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Tin | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | Dual | Green | Solder Eyelet(s) | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Tin | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | Dual | Green | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Gold | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 0.25 Ám | 10 Áin | Dual | Green | Solder Eyelet(s) | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount | Flush Mount M3 Threaded Insert Top Opening | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Cantilever | Non Specified - Dual Edge | Gold | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 22 | 0.25 Ám | 10 Áin | Dual | Green | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | 11 | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | 2 |
