VM.BCI Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
STANDARD MOTOR 3100 RPM 24V
| Part | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Voltage - Rated | Motor Type | Termination Style | RPM | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Function | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

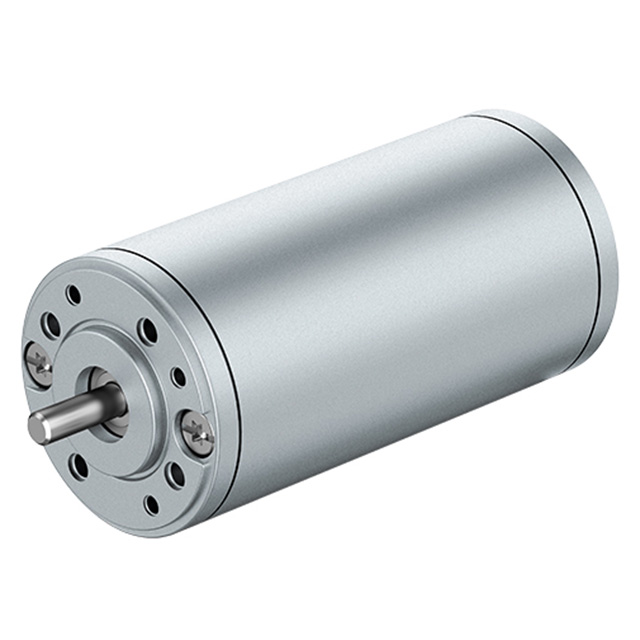

 ebm-papst Inc. | 42 mm | Round | 1.654 " | 57 mNm | 8.07 oz-in | 0.197 in | 5 mm | 24 VDC | Brushed | Wire Leads | 3100 RPM | 14.5 mm | 0.571 in | 40 °C | 0 °C | DC Motor | Standard | 1.26 in | 32 mm |

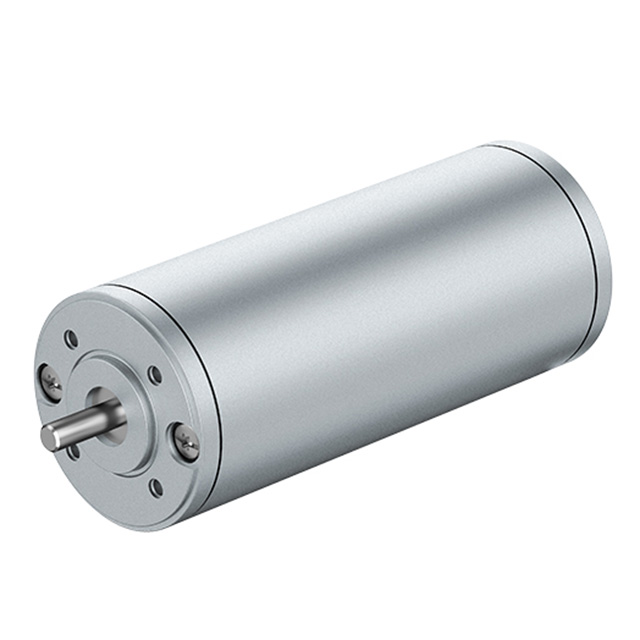

 ebm-papst Inc. | 52 mm | Round | 2.047 " | 170 mNm | 24.08 oz-in | 0.236 in | 6 mm | 24 VDC | Brushed | Wire Leads | 3100 RPM | 18.2 mm | 0.717 in | 40 °C | 0 °C | DC Motor | Standard | 1.26 in | 32 mm |

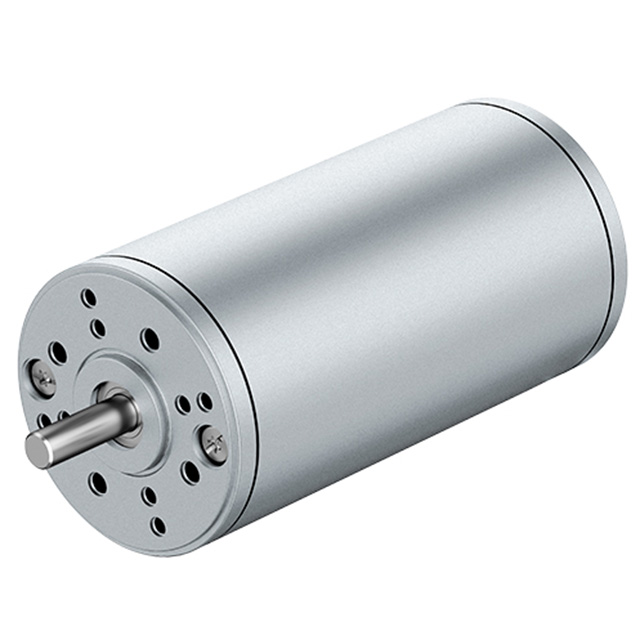

 ebm-papst Inc. | 63 mm | Round | 2.48 in | 270 mNm | 38.24 oz-in | 0.315 in | 8 mm | 24 VDC | Brushed | Wire Leads | 3300 RPM | 20.2 mm | 0.795 in | 40 °C | 0 °C | DC Motor | Standard | 1.89 in | 48 mm |
