SM31E Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

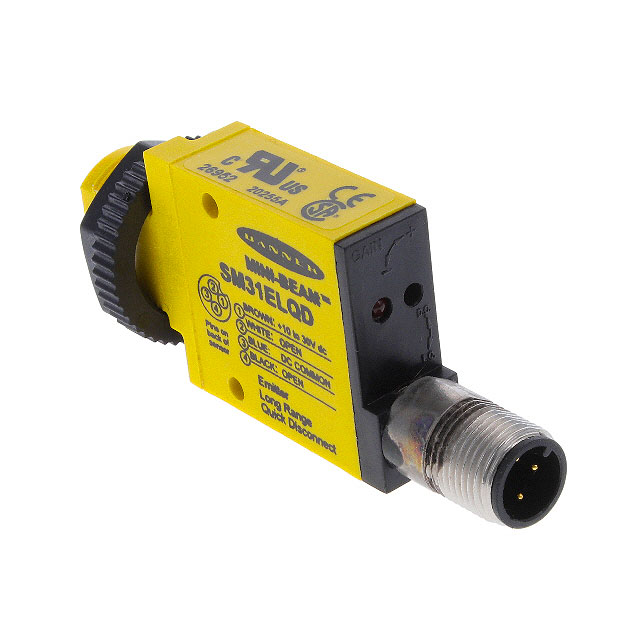

PHOTOELECTRIC SENSOR, MINI-BEAM, EMITTER, OPPOSED, 30M, NPN / PNP, 10-30VDC, QUICK DISCONNECT
| Part | Ingress Protection | Response Time | Sensing Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Adjustment Type | Connection Method | Sensing Distance | Sensing Distance | Light Source | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 | 1 ms | Through-Beam | 10 VDC | 30 VDC | -20 ░C | 70 °C | Adjustable Potentiometer | Connector | 30 m | 98.43 ft | Infrared LED | ||
 BANNER ENGINEERING | 12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 | 1 ms | Through-Beam | 10 VDC | 30 VDC | -20 ░C | 70 °C | Adjustable Potentiometer | Cable | 30 m | 98.43 ft | Infrared LED | 78.74 " | 2 m |
 BANNER ENGINEERING | 12 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 | 1 ms | Through-Beam | 10 VDC | 30 VDC | -20 ░C | 70 °C | Adjustable Potentiometer | Connector | 3 m | 118.11 in | Infrared LED |
