851-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

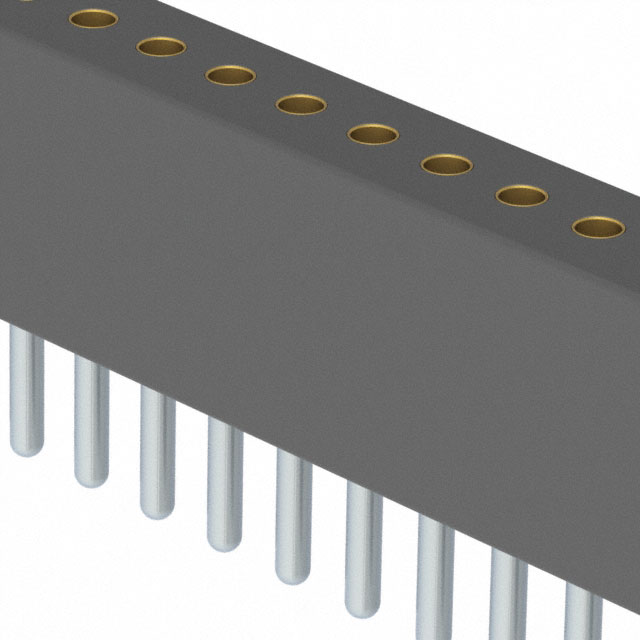

CONN RCPT 72POS 0.05 GOLD PCB
| Part | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Number of Positions Loaded | Current Rating (Amps) | Mounting Type | Connector Type | Insulation Color | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Type | Fastening Type | Number of Positions | Termination | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Finish - Mating | Contact Finish - Post | Insulation Height | Insulation Height | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.115 in | 2.92 mm | Female Socket | Push-Pull | 72 | Solder | 1.27 mm | 0.05 in | 0.185 in | 4.7 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | |||

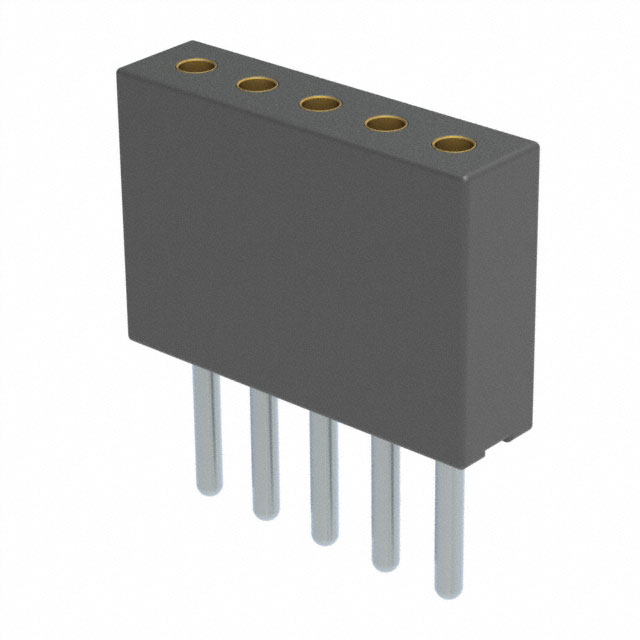

 Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.115 in | 2.92 mm | Female Socket | Push-Pull | 5 | Solder | 1.27 mm | 0.05 in | 0.185 in | 4.7 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | |||
Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.115 in | 2.92 mm | Female Socket | Push-Pull | 45 | Solder | 1.27 mm | 0.05 in | 0.185 in | 4.7 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | |||
 Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Right Angle Through Hole | Receptacle | Black | 1 | 0.118 in | 3 mm | Female Socket | Push-Pull | 49 | Solder | 1.27 mm | 0.05 in | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | 0.087 " | 2.2 mm | |||
Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.115 in | 2.92 mm | Female Socket | Push-Pull | 59 | Solder | 1.27 mm | 0.05 in | 0.185 in | 4.7 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | |||
Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.115 in | 2.92 mm | Female Socket | Push-Pull | 37 | Solder | 1.27 mm | 0.05 in | 0.185 in | 4.7 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | |||
 Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Right Angle Through Hole | Receptacle | Black | 1 | 0.118 in | 3 mm | Female Socket | Push-Pull | 1 | Solder | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | 0.087 " | 2.2 mm | |||||
 Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.099 in | 2.51 mm | Female Socket | Push-Pull | Solder | 1.27 mm | 0.05 in | 0.161 in | 4.1 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | 31 | |||
Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.099 in | 2.51 mm | Female Socket | Push-Pull | 40 | Solder | 1.27 mm | 0.05 in | 0.161 in | 4.1 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead | |||
Mill-Max Manufacturing Corp. | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Beryllium Copper | All | 3 A | Through Hole | Receptacle | Black | 1 | 0.099 in | 2.51 mm | Female Socket | Push-Pull | 28 | Solder | 1.27 mm | 0.05 in | 0.161 in | 4.1 mm | -55 C | 125 °C | 0.76 Ám | 30 Áin | UL94 V-0 | Gold | Tin-Lead |
