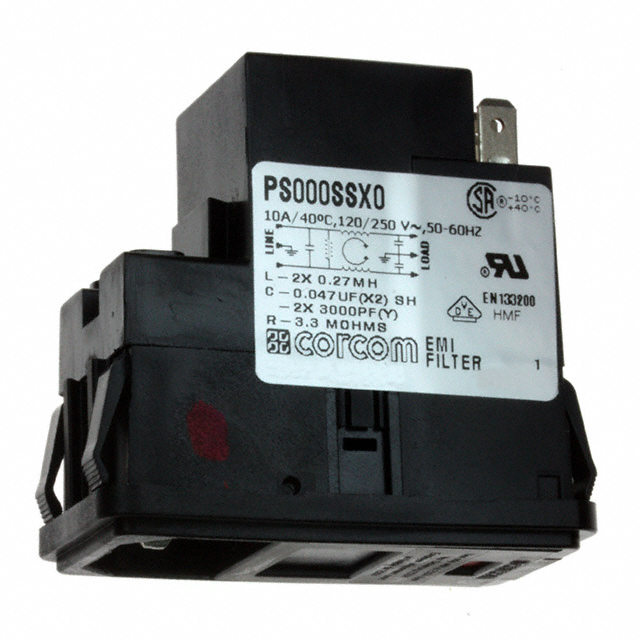

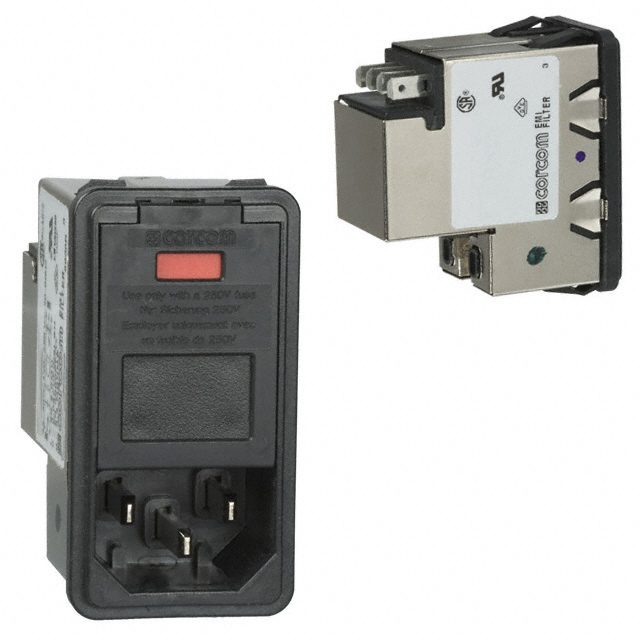

PS000S Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Panel Cutout Dimensions | Connector Style | Features | Mounting Type | Termination | Termination | Termination | Accomodates a Fuse | Current Rating - Appliance Inlet | Fuse Holder, Drawer | Approval Agency | Current Rating - Filter | Connector Type | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Filter Type | Voltage Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | Variable Size | IEC 320-C14 | Conversion Clip Shielded | Panel Mount Snap-In | Quick Connect | 0.187 " | 4.7 mm | 3 A | Fuse Holder | CSA UL VDE | 3 A | Receptacle Male Blades - Module | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Filtered (EMI RFI) - Commercial | 120 VAC | |
 TE Connectivity Corcom Filters | Variable Size | IEC 320-C14 | Conversion Clip | Panel Mount Snap-In | Quick Connect | 0.187 " | 4.7 mm | 10 A | Fuse Holder | CSA UL VDE | 10 A | Receptacle Male Blades - Module | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Filtered (EMI RFI) - Commercial | 120 VAC |
