JWS21R Series
Manufacturer: NKK Switches
Beta
⌘K

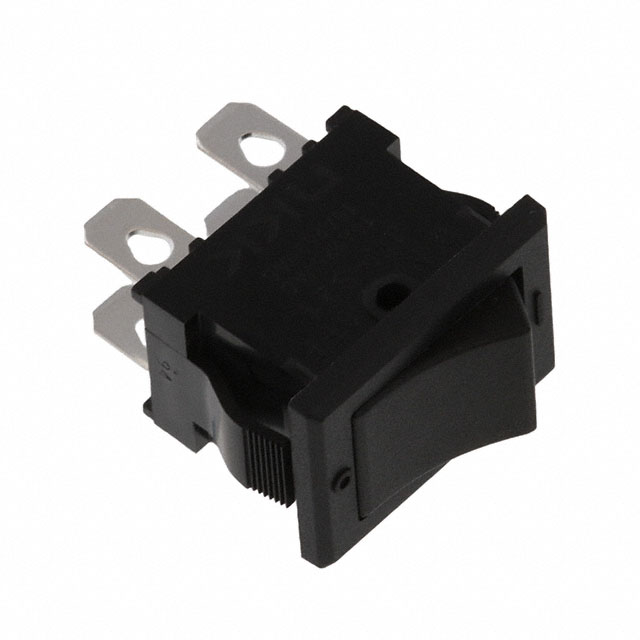

ROCKER SWITCH, NON ILLUMINATED, DPST, ON-NONE-OFF, BLACK, PANEL MOUNT, 10 A
| Part | Mechanical Life | Electrical Life | Mounting Type | Actuator Type | Voltage Rating - AC | Circuit | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Termination Style | Termination Style | Actuator Marking | Approval Agency | Color - Actuator/Cap | Switch Function | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 10000 Cycles | Panel Mount Snap-In | Concave (Curved) | 125 V | DPST | Dust Proof | -25 °C | 70 °C | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | No Marking | CSA UL VDE | Black | On-Off | 6 A |
 NKK Switches | 30000 Steps | 10000 Cycles | Panel Mount Snap-In | Concave (Curved) | 125 V | DPST | Dust Proof | -25 °C | 70 °C | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | No Marking | CSA UL VDE | Black | On-Off | 6 A |
 NKK Switches | 30000 Steps | 10000 Cycles | Panel Mount Snap-In | Concave (Curved) | 125 V | DPST | Dust Proof | -25 °C | 70 °C | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | No Marking | CSA UL VDE | Red | On-Off | 6 A |
