424-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K

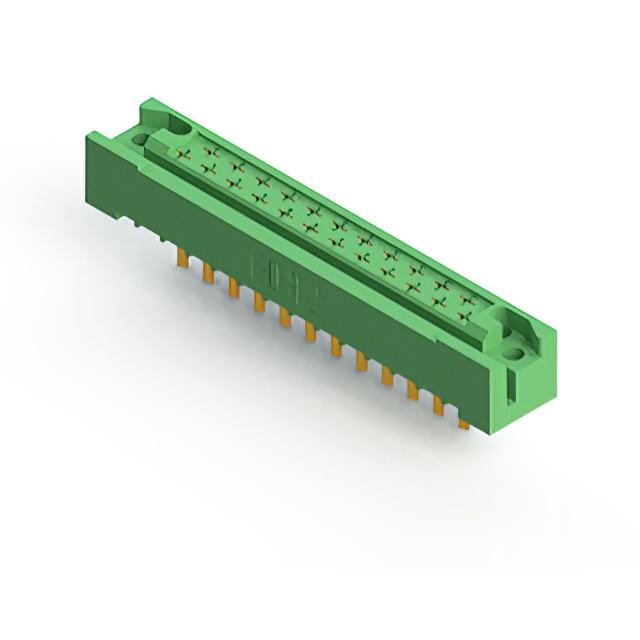

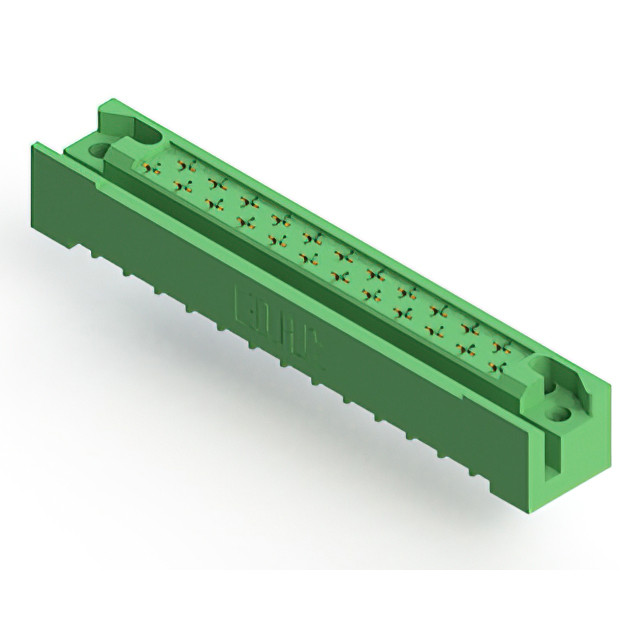

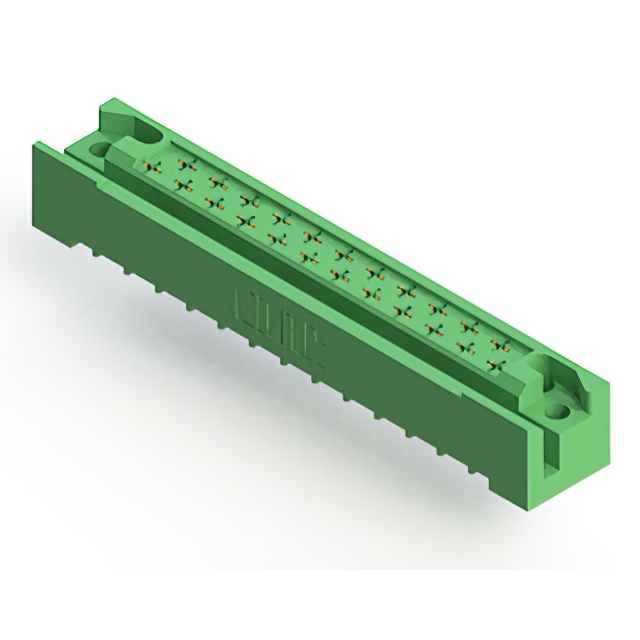

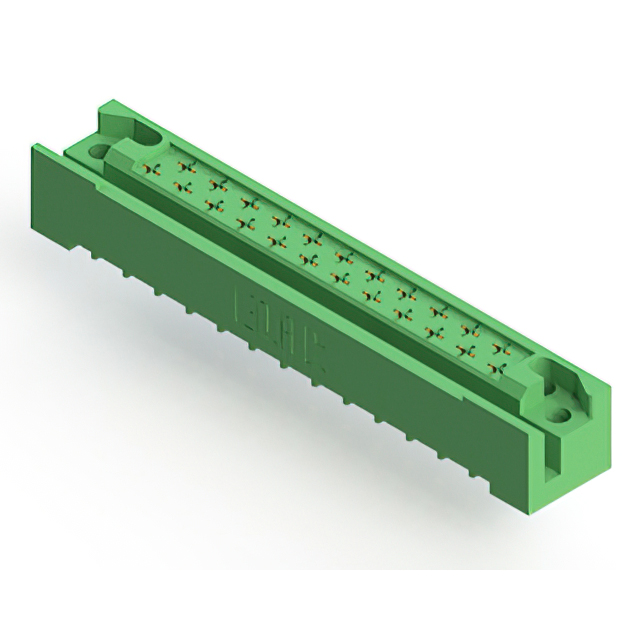

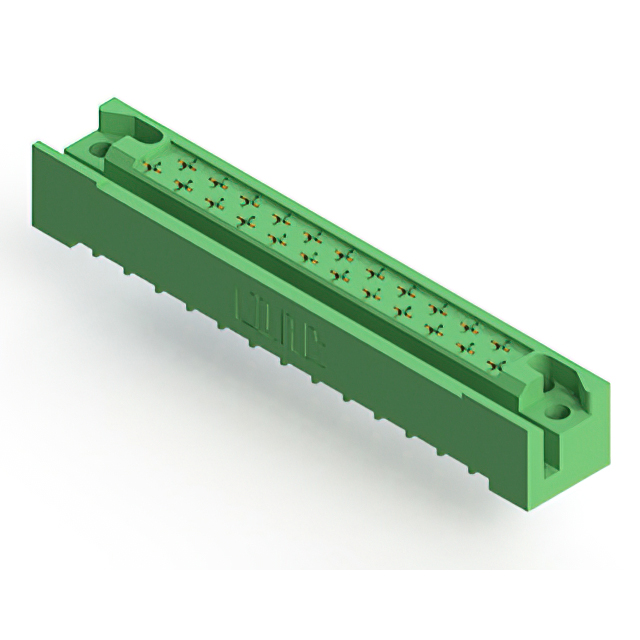

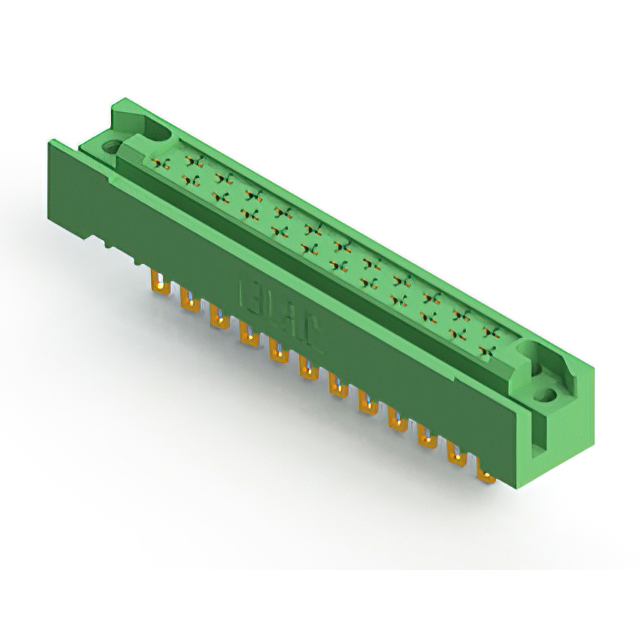

CONN EDGE DUAL FMALE 23POS 0.200
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Pitch | Pitch | Contact Material | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Termination | Contact Finish | Number of Positions | Card Thickness | Card Thickness | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Solder | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Wire Wrap | Gold | 23 | 1.57 mm | 0.062 in | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Wire Wrap | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Solder | Gold | 23 | 1.57 mm | 0.062 in | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Solder | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Wire Wrap | Gold | 23 | 1.57 mm | 0.062 in | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Solder | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Solder Eyelet(s) | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Wire Wrap | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | Solder | Gold | 23 | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Panel Mount Through Hole | -65 ░C | 125 °C | 2 |
