92315 Series

Manufacturer: Molex

Catalog

PICOFLEX PF-50 IDT-TO-PICOFLEX PF-50 IDT CABLE ASSEMBLY, 0.50M LENGTH, TIN (SN) PLATING, 16 CIRCUITS

Part	Number of Rows	Pitch - Cable	Pitch - Cable	Shielding	Length	Length	Length	Connector Type	Contact Finish	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Number of Rows [custom]
Molex 923151650
Molex 923151407
Molex 0923151216	1	0.05 in	1.27 mm	Unshielded	0.525 ft	160 mm	6.3 "	Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	12	0.05 "	1.27 mm
Molex 0923150608	1	0.05 in	1.27 mm	Unshielded	0.263 ft	80.01 mm	3.15 "	Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	6	0.05 "	1.27 mm
Molex 0923151230		0.05 in	1.27 mm	Unshielded				Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	12	0.1 in	2.54 mm	0.984 ft	300 mm	11.81 in	2
Molex 0923151609		0.05 in	1.27 mm	Unshielded	0.295 ft	90 mm	3.54 "	Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	16	0.1 in	2.54 mm				2

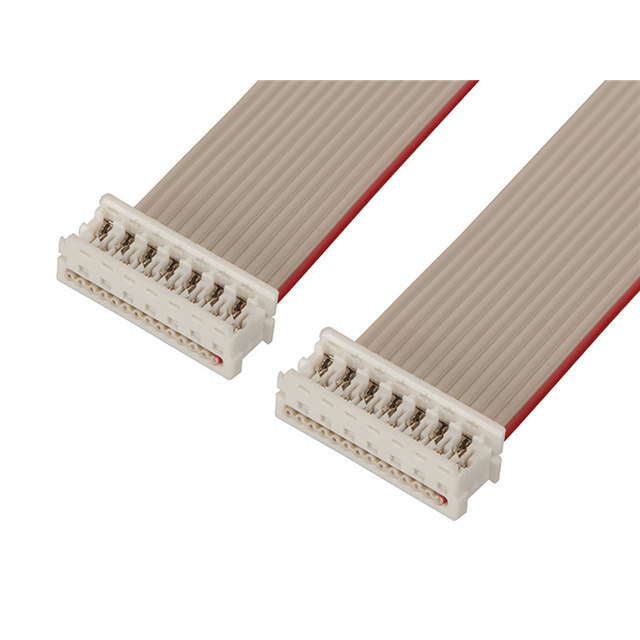

Molex 0923151450	1	0.05 in	1.27 mm	Unshielded	1.64 ft	50 cm		Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	14	0.05 "	1.27 mm
Molex 0923152622		0.05 in	1.27 mm	Unshielded	0.722 ft	220 mm	8.66 "	Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	26	0.1 in	2.54 mm				2
Molex 0923151635		0.05 in	1.27 mm	Unshielded	1.15 ft	350 mm		Socket to Socket	Tin	IDC	2.03 Ám	80 Áin	16	0.1 in	2.54 mm				2
Molex 923152654
