A61AS Series

Catalog

RELAY AUTOMOTIVE SPST 30A 24V

Part	Contact Material	Coil Resistance	Features	Coil Power	Coil Voltage	Coil Current	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Termination Style	Switching Voltage [Max]	Coil Type	Must Operate Voltage	Operate Time	Must Release Voltage	Contact Rating (Current)	Contact Form
CIT Relay and Switch A61AS24VDC1.3D	Silver Tin Oxide (AgSnO)	436 Ohms	Diode Micro 280 ISO Sealed - Fully	1.3 W	24 VDC	55 mA	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	16.8 VDC	5 ms	2.4 VDC	30 A	SPST-NO (1 Form A)

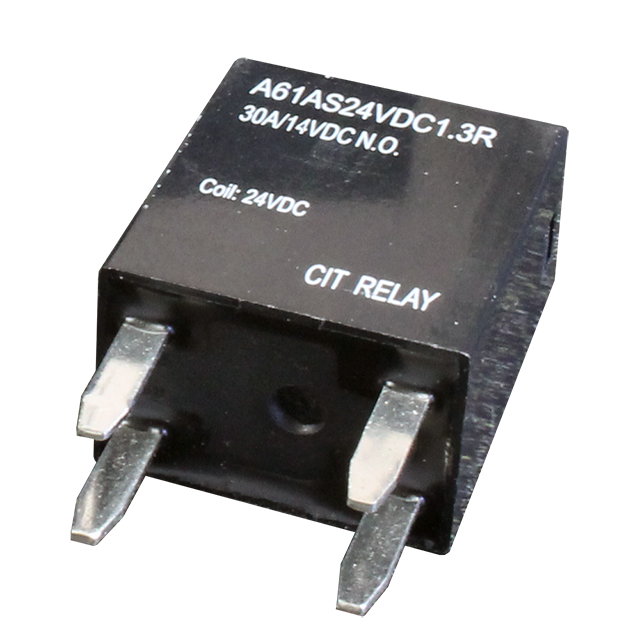

CIT Relay and Switch A61AS24VDC1.3R	Silver Tin Oxide (AgSnO)	436 Ohms	Micro 280 ISO Resistor Sealed - Fully	1.3 W	24 VDC	55 mA	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	16.8 VDC	5 ms	2.4 VDC	30 A	SPST-NO (1 Form A)
CIT Relay and Switch A61AS12VDC1.3R	Silver Tin Oxide (AgSnO)	109 Ohms	Micro 280 ISO Resistor Sealed - Fully	1.3 W	12 VDC	110.1 mA	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	8.4 VDC	5 ms	1.2 VDC	30 A	SPST-NO (1 Form A)

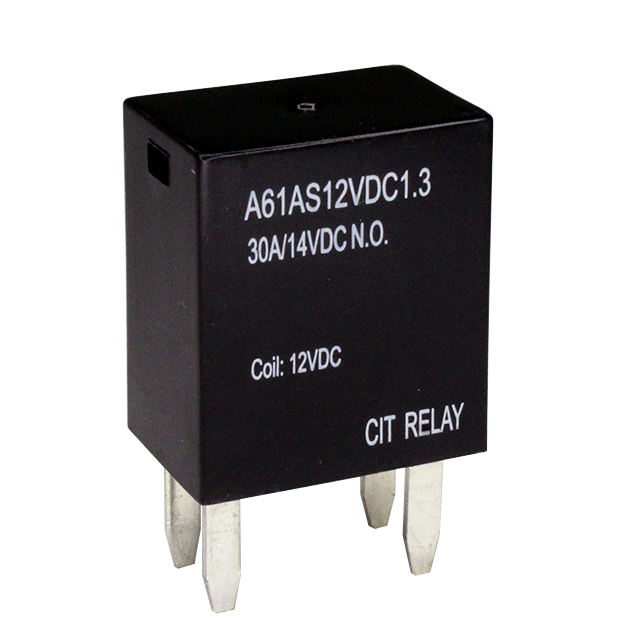

CIT Relay and Switch A61AS12VDC1.3	Silver Tin Oxide (AgSnO)	109 Ohms	Sealed - Fully	1.3 W	12 VDC	110.1 mA	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	8.4 VDC	5 ms	1.2 VDC	30 A	SPST-NO (1 Form A)
CIT Relay and Switch A61AS12VDC.9D	Silver Tin Oxide (AgSnO)	160 Ohms	Diode Micro 280 ISO Sealed - Fully	900 mW	12 VDC	0.075 A	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	8.4 VDC	5 ms	1.2 VDC	30 A	SPST-NO (1 Form A)
CIT Relay and Switch A61AS24VDC.9R	Silver Tin Oxide (AgSnO)	640 Ohms	Micro 280 ISO Resistor Sealed - Fully	900 mW	24 VDC	0.0375 A	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	16.8 VDC	5 ms	2.4 VDC	30 A	SPST-NO (1 Form A)

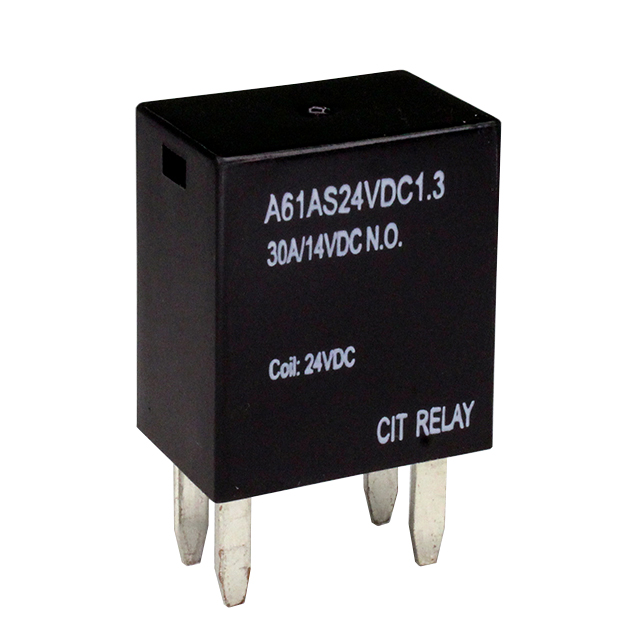

CIT Relay and Switch A61AS24VDC1.3	Silver Tin Oxide (AgSnO)	436 Ohms	Micro 280 ISO Sealed - Fully	1.3 W	24 VDC	55 mA	Through Hole	85 °C	-40 C	2 ms	PC Pin	75 VDC	Non Latching	16.8 VDC	5 ms	2.4 VDC	30 A	SPST-NO (1 Form A)
