MSTBVA Series

Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header

Catalog

Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header

Part	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Housing Material	Insulation Height	Insulation Height	Number of Levels	Voltage - UL	Number of Positions	Color	Current - UL	Contact Mating Finish	Positions Per Level	Header Orientation	Type	Termination Style	Current - IEC	Pitch	Pitch	Mounting Type	Voltage - IEC
Phoenix Contact 1924389	UL94 V-0	3.9 mm	0.154 in	Polyamide (PA) Nylon	0.472 "	12 mm	1	300 V	10	Green	16 A	Tin	10	Vertical	Header Male Pins Shrouded (4 Side)	Solder	16 A	5.08 mm	0.2 in	Through Hole	400 V

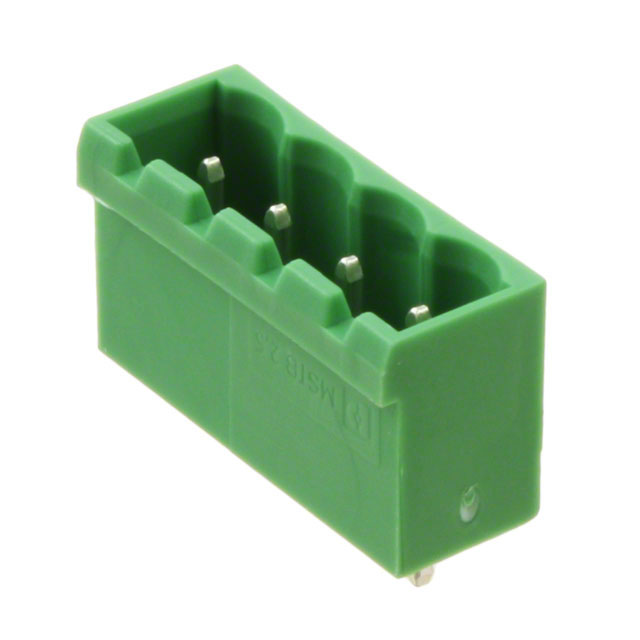

Phoenix Contact 1755532	UL94 V-0	3.9 mm	0.154 in	Polyamide (PA) Nylon	0.472 "	12 mm	1	300 V	4	Green	12 A	Tin	4	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5 mm	0.197 in	Through Hole	400 V
Phoenix Contact 1755574	UL94 V-0	3.9 mm	0.154 in	Polyamide (PA) Nylon	0.472 "	12 mm	1	300 V	8	Green	12 A	Tin	8	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5 mm	0.197 in	Through Hole	400 V

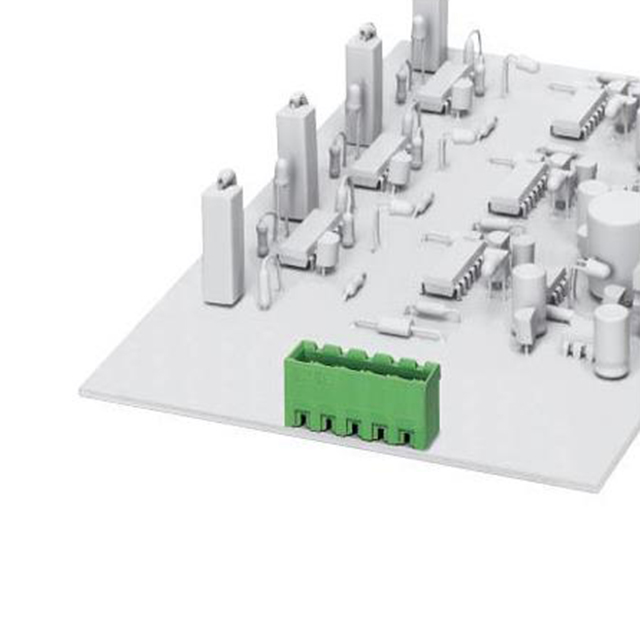

Phoenix Contact 1719138	UL94 V-0	3.9 mm	0.154 in	Polyamide (PA) Nylon	0.472 "	12 mm	1	300 V		Gray	12 A	Gold	3	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5.08 mm	0.2 in	Through Hole	400 V
Phoenix Contact 1896284							1		8	Gray		Tin	8	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5.08 mm	0.2 in	Through Hole	250 V

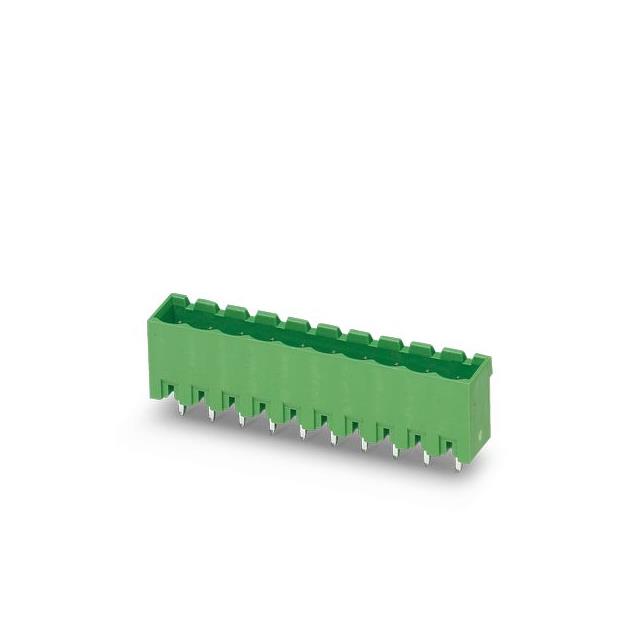

Phoenix Contact 1740385		3.9 mm	0.154 in		0.472 "	12 mm	1	300 V		Black	12 A	Tin	3	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5 mm	0.197 in	Through Hole	250 V

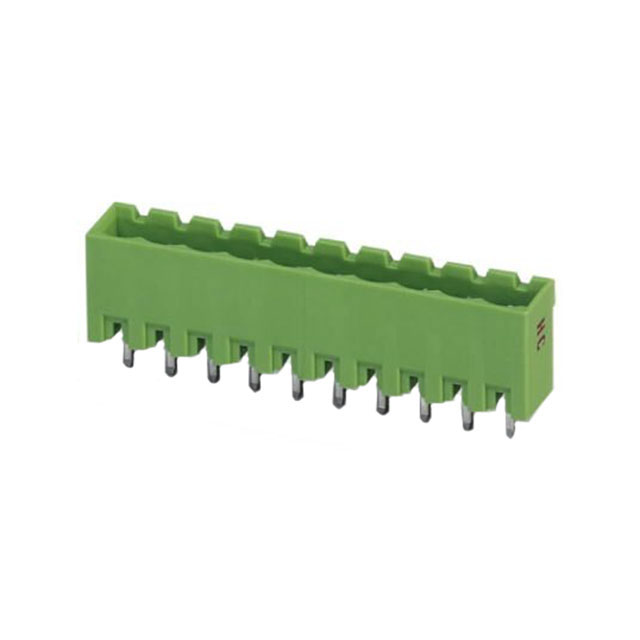

Phoenix Contact 1924279	UL94 V-0	3.9 mm	0.154 in	Polyamide (PA) Nylon	0.472 "	12 mm	1	300 V	10	Green	16 A	Tin	10	Vertical	Header Male Pins Shrouded (4 Side)	Solder	16 A	5 mm	0.197 in	Through Hole	630 V
Phoenix Contact 1712021							1					Tin	3	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5.08 mm	0.2 in	Through Hole	250 V
Phoenix Contact 1755668							1	300 V	18	Green	12 A	Tin	18	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5 mm	0.197 in	Through Hole	400 V

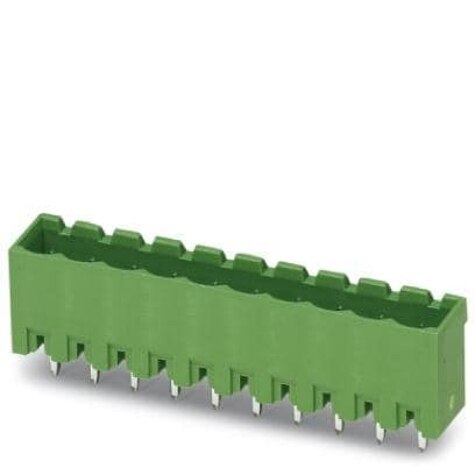

Phoenix Contact 1755930							1	300 V	22	Green	12 A	Tin	22	Vertical	Header Male Pins Shrouded (4 Side)	Solder	12 A	5.08 mm	0.2 in	Through Hole	630 V
