DH2C Series

Catalog

SWITCH SNAP ACTION SPDT 0.5A 30V

Part	Termination Style	Pretravel	Pretravel	Mechanical Life	Mounting Type	Operating Position	Operating Position	Overtravel [custom]	Overtravel [custom]	Differential Travel	Differential Travel	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Ingress Protection	Circuit	Operating Force

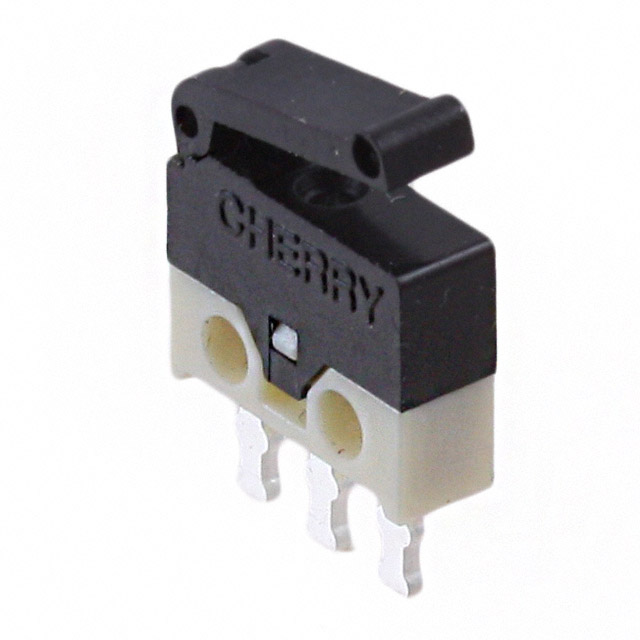

ZF Electronics DH2CB1PA	Solder Lug	0.051 in	1.3 mm	50000 Cycles	Chassis Mount	6.7 mm	0.264 in	0.011 "	0.3 mm	0.025 in	0.6 mm	Lever Simulated Roller	-25 °C	70 °C	30000 Cycles	30 V	500 mA	On-Mom	IP40	SPDT	50 gf

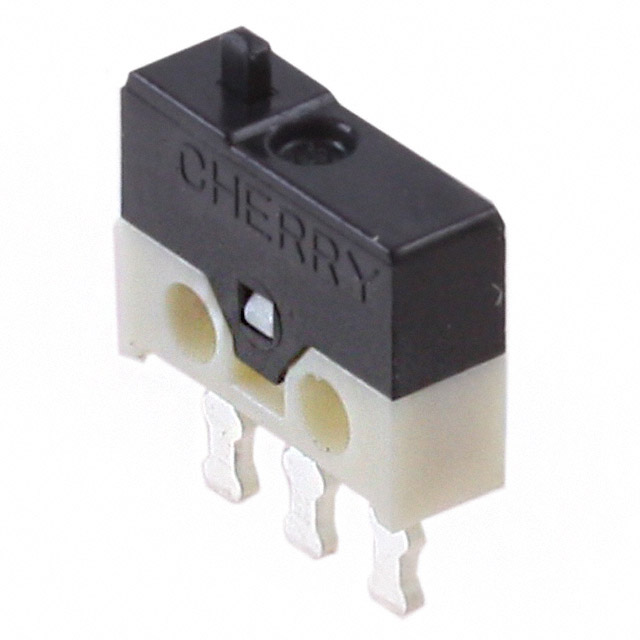

ZF Electronics DH2CB1AA	Solder Lug	0.014 in	0.35 mm	50000 Cycles	Chassis Mount	5.6 mm	0.22 in	0.004 in	0.1 mm			Round (Pin Plunger)	-25 °C	70 °C	30000 Cycles	30 V	500 mA	On-Mom	IP40	SPDT	90 gf
