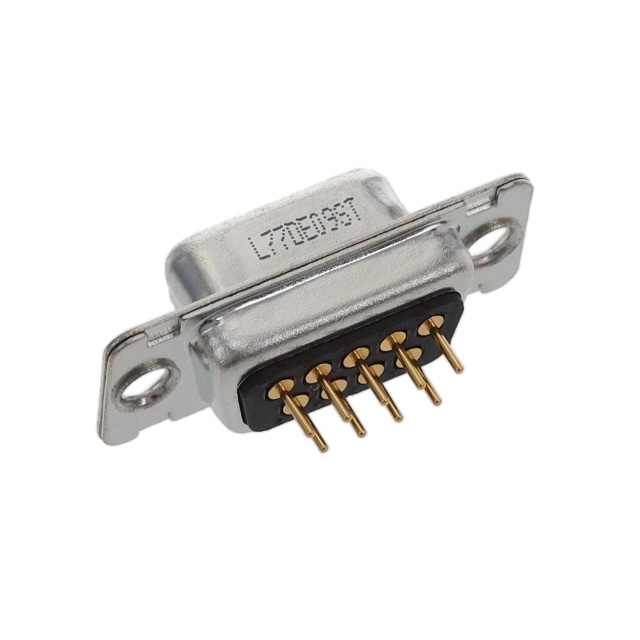

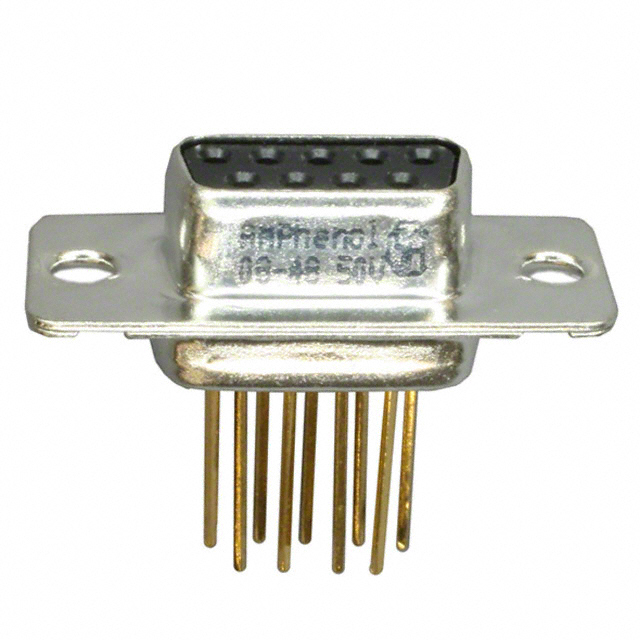

L77DE09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 9POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Dielectric Material | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Finish | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Mounting Type | Number of Rows [custom] | Number of Positions | Backset Spacing | Backset Spacing | Current Rating (Amps) | Connector Style | Termination | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | 4-40 Mating Side Female Screwlock | 1 | DE E | UL94 V-0 | Right Angle Through Hole | 2 | 9 | 0.319 in | 8.1 mm | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | Mounting Brackets |
Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Right Angle Through Hole | 2 | 9 | 0.406 in | 10.3 mm | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | Mounting Brackets |
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Through Hole | 2 | 9 | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | |||
Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Through Hole | 2 | 9 | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | |||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | 4-40 Mating Side Female Screwlock | 1 | DE E | UL94 V-0 | Right Angle Through Hole | 2 | 9 | 0.406 in | 10.3 mm | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | Mounting Brackets |
Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Through Hole | 2 | 9 | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | |||
Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Right Angle Through Hole | 2 | 9 | 0.319 in | 8.1 mm | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | Mounting Brackets |
Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Right Angle Through Hole | 2 | 9 | 0.319 in | 8.1 mm | 7.5 A | D-Sub | Solder | Receptacle Female Sockets | Mounting Brackets |
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | Housing/Shell (Unthreaded) | 1 | DE E | UL94 V-0 | Panel Mount Through Hole | 2 | 9 | 7.5 A | D-Sub | Wire Wrap | Receptacle Female Sockets | |||
Amphenol ICC (Commercial Products) | -55 C | 125 °C | 300 VDC | Brass | Thermoplastic Glass Filled | Black | 0.203 çm | 8 µin | Signal | Gold | 4-40 Mating Side Female Screwlock | 1 | DE E | UL94 V-0 | Through Hole | 2 | 9 | 7.5 A | D-Sub | Solder | Receptacle Female Sockets |
