9W1BM24 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

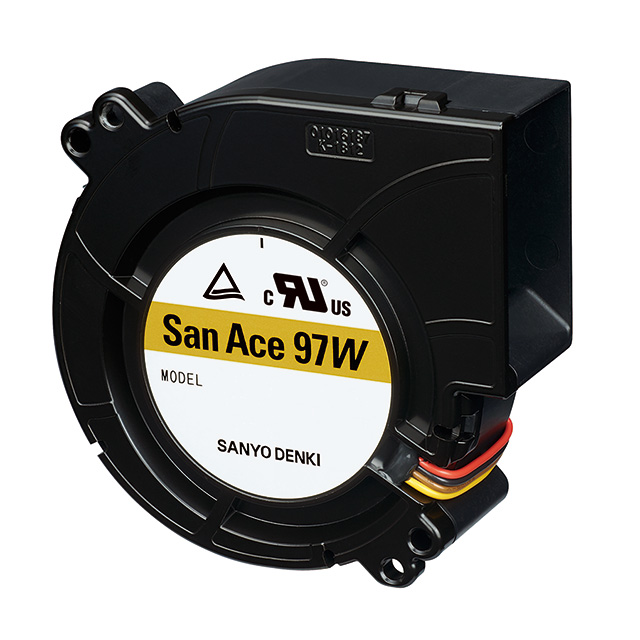

BLOWER, 97MM, 38.5CFM, 24VDC, 58DBA ROHS COMPLIANT: YES
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Fan Type | Width | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Noise | Ingress Protection | Bearing Type | Air Flow | Air Flow | Termination | Features | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Static Pressure | Static Pressure | Weight | Weight | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 650 mA | Aluminum | Varies Based on Temperature | Blower | 33 mm | 4800 RPM | -20 ░C | 70 °C | 24 VDC | 58 dB(A) | IP68 - Dust Tight Waterproof | Ball | 1.08 m³/min | 38.6 CFM | 4 Wire Leads | PWM Control Speed Sensor (Tach) | 97.1 mm | Rectangular/Rounded | 95 mm | 2.16 in H2O | 540 Pa | 0.529 lb | 240 g | 15.6 W | cURus TUV |
 Sanyo Denki America Inc. | Plastic | 0.45 A | Aluminum | Varies Based on Temperature | Blower | 33 mm | 4100 RPM | -20 ░C | 70 °C | 24 VDC | 55 dB(A) | IP68 - Dust Tight Waterproof | Ball | 0.918 mł/min | 32.8 CFM | 4 Wire Leads | PWM Control Speed Sensor (Tach) | 97.1 mm | Rectangular/Rounded | 95 mm | 1.53 in H2O | 381.1 Pa | 0.529 lb | 240 g | 10.8 W | cURus TUV |
