2041549 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

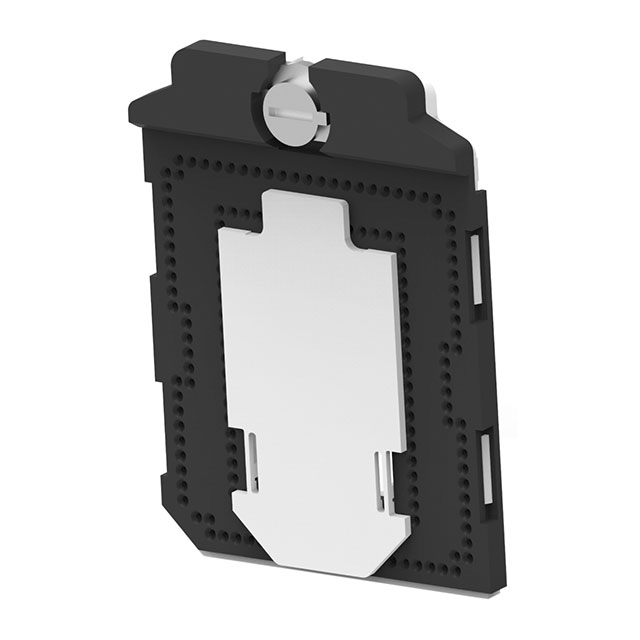

SOCKET ASSY, DMD 350, T/R, G/F
| Part | Contact Finish - Mating | Material Flammability Rating | Type | Current Rating (Amps) | Mounting Type | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Contact Material - Mating | Pitch - Post | Pitch - Post | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Post [custom] | Contact Finish - Post | Housing Material | Termination | Features | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | UL94 V-0 | PGA ZIF (ZIP) | 0.5 A | Surface Mount | Flash | 35 | 350 | 36 | Copper Alloy | 1.27 mm | 0.05 in | 105 ░C | -55 °C | Copper Alloy | Tin-Lead | Liquid Crystal Polymer (LCP) Glass Filled | Solder | Closed Frame | 0.05 in | 1.27 mm |
