LCBS-6 Series
Manufacturer: Essentra Components
Beta
⌘K

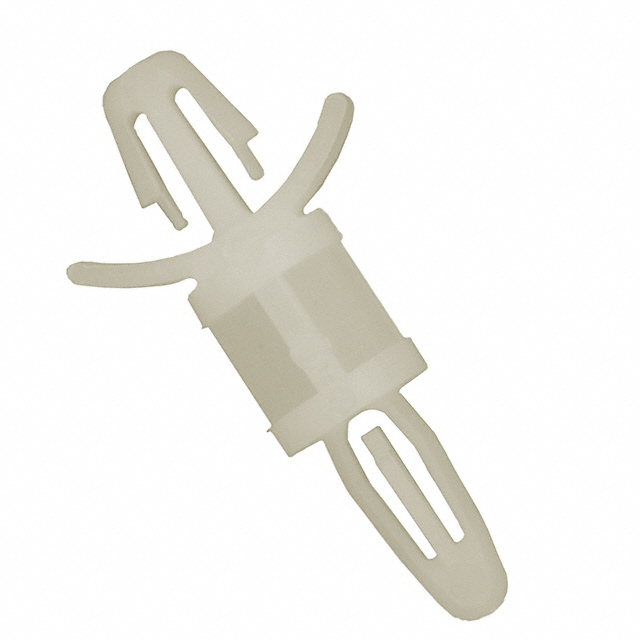

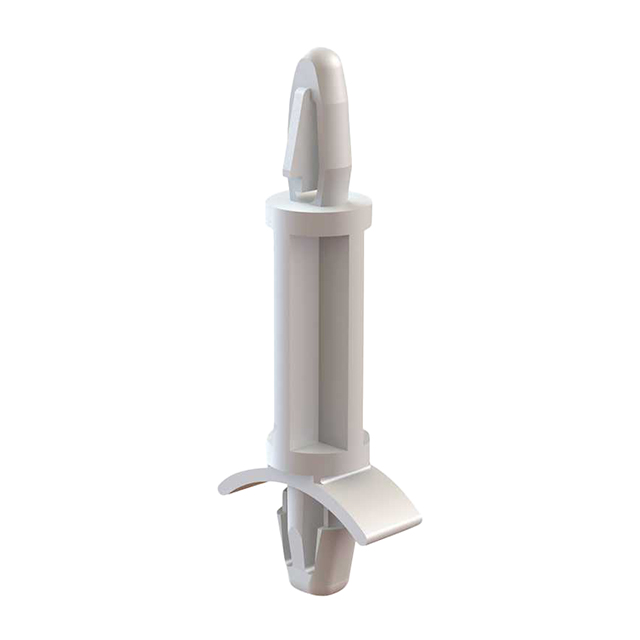

PCB SUPPORT, LOCKING, NYLON, 9.5 MM HEIGHT, 25 PACK
| Part | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Features | Between Board Height | Between Board Height | Between Board Height | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Material | Length - Overall | Length - Overall | Holding Type | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Type | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 3.99 mm | 0.157 " | Winged | 0.375 in | 9.53 mm | 0.375 " | 0.1875 in | 0.187 in | 4.75 mm | Nylon | 1.106 in | 28.1 mm | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm |
 Essentra Components | 3.99 mm | 0.157 " | Winged | 0.375 in | 9.53 mm | 0.375 " | 0.1875 in | 0.187 in | 4.75 mm | Nylon | 1.106 in | 28.1 mm | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm |
